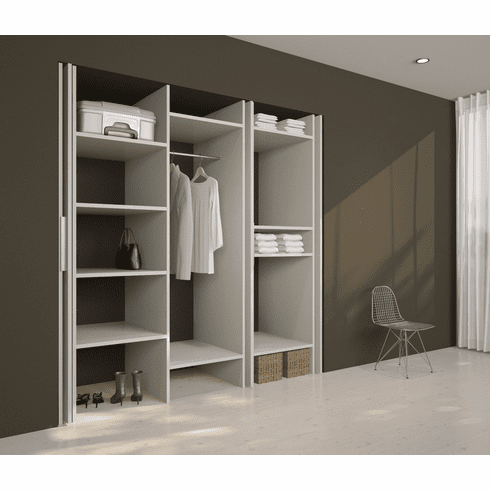

Hafele 408.30.591 HAWA Concepta 30, 1851 - 2300mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.30.591

  Product Title: Wooden Pivot Sliding Doors, Hawa Concepta, For 1-leaf wooden pivot sliding doors, hinges with soft closing mechanism, Infront/Vorfront, for wooden doors, door weight 30 kg, hinges with soft closing mechanism

  Category: Wooden Pivot Sliding Doors, Hawa Concepta, For 1-leaf wooden pivot sliding doors, hinges with soft closing mechanism

  Item Details …

  - Door Thickness: Straight edge: 19 - 30 mm (3/4" - 1 3/16") Rabbeted edge: >30 - 50 mm (>1 3/16" - 1 15/16")

  - The door is pulled into the pocket automatically

  - Suitable for room partitioning as there is no need for a base panel and top panel in wall recesses

  - For left and right hand use

  - Unique scissor technology accommodates large and heavy doors

  - All adjustments are made from the front of the cabinet

  - Area of application : For 1 door

  - For door material : wood

  - For door width : 300?–?900 mm

  - Version : Hinges with soft closing mechanism

  - For door thickness min. : 3/4"

  - For door thickness max. : 1 15/16"

  - Length (inch) : 2' 1 19/32"

  - Door width max. :

  - For door thickness : 19?–?30 mm

  - Running gear version : 40/50 kg: 2 rollers

  - Running gear guided by : Ball bearing

  - Installation : For left and right hand use

  - Order reference

  - ? Parking pocket for 1 door

  - Length 650 mm: 1 set of Cat. No. 408.30.243

  - Length 900 mm: 2 pieces of Cat. No. 408.30.092

  - ?, ? Parking pocket for 2 doors

  - Construction with adjustable feet

  - Profile for top and bottom:

  - Length 650 mm: 2 pieces of Cat. No. 408.30.093

  - Length 900 mm: 2 pieces of Cat. No. 408.30.094

  - Construction with fixed plinth

  - Profile for top:

  - Length 650 mm: 1 pieces of Cat. No. 408.30.093

  - Length 900 mm: 1 pieces of Cat. No. 408.30.094

  - Profile for bottom:

  - Length 26 mm: 1 pieces of Cat. No. 408.30.095

  - Supplied with:

  - 1 scissor assembly with two guides

  - 1 spacer profile

  - 1 door stopper with clip-in stopper

  - 3 alternative profiles and brushes

  - 1 pair of cover caps

  - 1 end position damper

  - 1 self closing mechanism for door

  - 1 soft stopper bracket

  - 1 upright with 2 play-free guides

  - 3 concealed hinges

  - 2 guide tracks

  - Mounting instructions


  Additional Information …

  A set is for one door.
