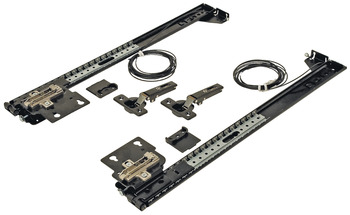

Hafele 408.24.481 Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit) Length: 813 mm (32")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.481

  Product Title: Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit), Length: 813 mm (32")

  Category: Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit),

  Item Details �

  - Pocket width: 51�64 mm (2"�2 1/2") depending on door thickness

  - Area of application : For pivot sliding doors

  - For door material : wood

  - Set : Set with tracks

  - For door width : ?660 mm

  - For door height : ?1,981 mm

  - Note on door height : for doors 914 - 1981 mm (36 - 78") tall, additional hinges required

  - For door weight : ?34 kg

  - Load bearing capacity : 75 lbs.

  - For door thickness min. : 3/4 - 1 1/4" (for doors 20 mm (13/16")

  - For door width (inches) : Up to 26"

  - For door height (inches) : Up to 78" for doors (36 - 78") tall, addtional hinges required

  - Material/finish : Black

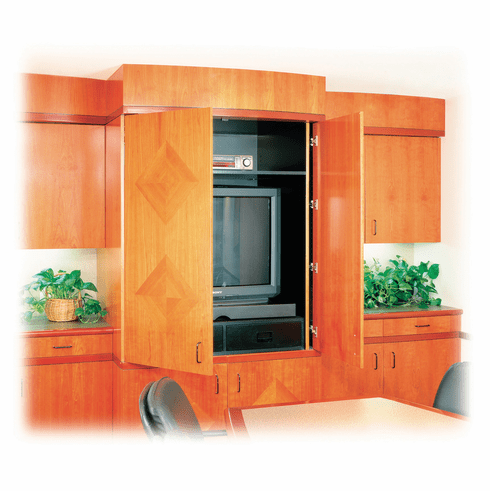

  - Installation : Vertically mounted concealed doors

  - Supplied with:

  - 35 mm hinge kit

  - Slide mounting hardware kit

  - Mounting instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

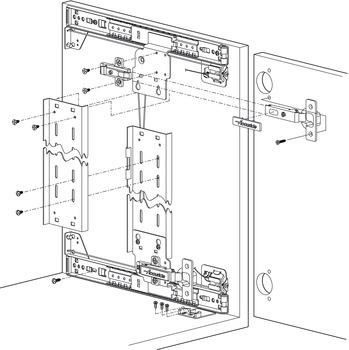

  Accuride CB1332 and CB1432 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page�7.122



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.105-7.106.pdf

  Hafele 408.24.481, 408-24-481, 40824481, 408.24


  Specifications/Hafele Catalog - Page# FC7.166: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Hinge Carrier Strip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • Black Zinc

    408.24.060 408.24.061

    Click to order Click to order



  Connector Clip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • undefined

    408.24.062

    Click to order



  Optional Accessories:



  • 40 mm (1 5/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Door
