Hafele 408.24.351 Pocket Door System, XL Slide Length: 600 mm (23 5/8")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.351

  Product Title: Pocket Door System, Häfele Slido F-Park 71 16A, Length: 600 mm (23 5/8")

  Category: Pocket Door System, Häfele Slido F-Park 71 16A,

  Item Details …

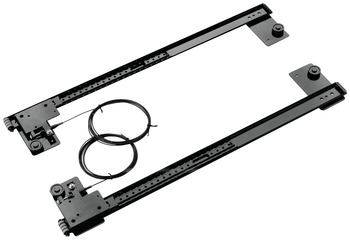

  - Steel cable is black nylon coated to reduce friction and enhance appearance

  - Jigs or fixtures are not required to locate slide top and bottom, integral location tabs locate slides in cabinet

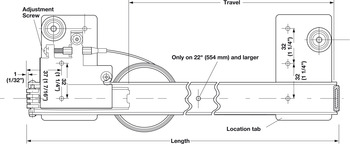

  - Adjustment screws allow maximum adjustability, cable tensioning adjustment is located at the slide front

  - Easily accessible from front of cabinet

  - Soft rubber roller on slide front protects door front from scratches and marring

  - Minimal installation and adjustment time for lower production costs

  - For door thickness max. : 1 1/4"

  - For door height (inches) : 32"

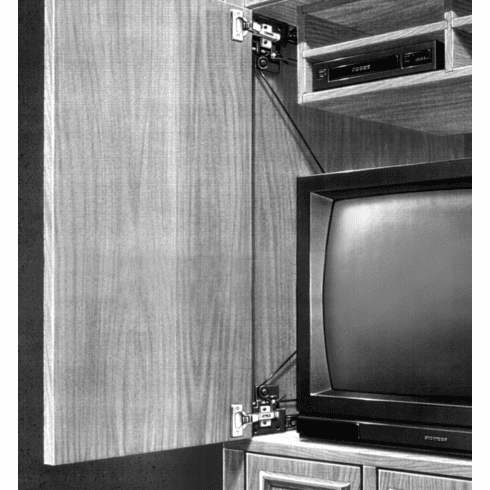

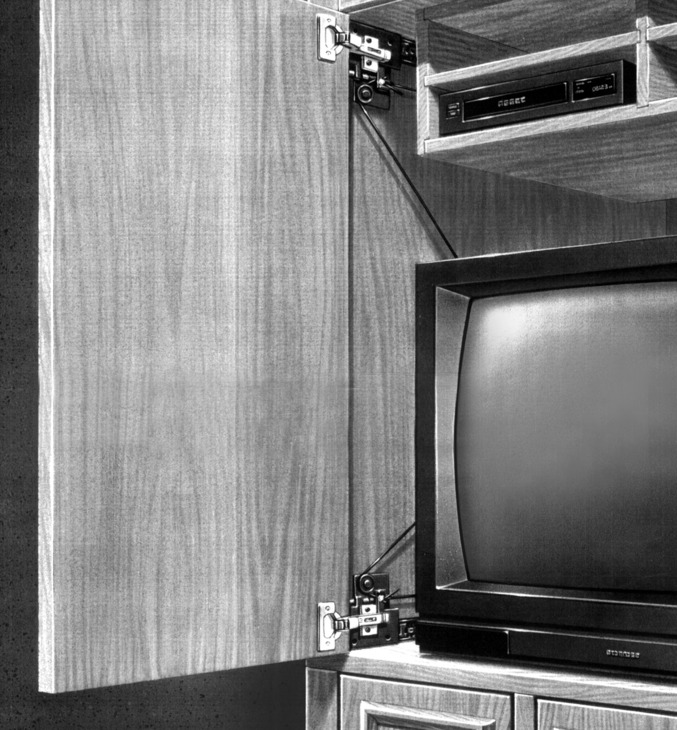

  - Area of application : Especially suited for use in larger door cabinets such as home theater applicationsFor use with doors up to 60” high, 24” wide & weighing up to 35 lbs.Accommodates doors up to 1 1/4” thick

  - Material : Steel, Zinc-electroplated and plasticCable: Steel, nylon coated

  - Color/finish : Black

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Slido F-Park71 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.120



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.103-7.104.pdf

  Hafele 408.24.351, 408-24-351, 40824351, 408.24


  Specifications/Hafele Catalog - Page# FC7.164: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Inlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park 71 16A (choose one):


  • 40 mm hinge/plate for 1 door, Self-closing 40 mm hinge/plate for 1 door, Free-swinging

    408.24.002 408.24.004

    Click to order Click to order



  Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A (choose one):


  • 35 mm hinge/plate for 1 door, Self-closing 35 mm hinge/plate for 1 door, Free-swinging

    408.24.020 408.24.050

    Click to order Click to order



  Overlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park71 16A (choose one):


  • 40 mm hinge/plate for 1 door, overlay application

    408.24.011

    Click to order
