Hafele 408.24.030 Pocket Door Component, Accuride 1234 Hinge Kit for inset frameless or overlay face frame door, Accuride 4180-0391-XE; 35 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.030

  Product Title: Pocket Door Component, Accuride 1234 Hinge Kit, for inset frameless or overlay face frame door, Accuride 4180-0391-XE; 35 mm

  Category: Pocket Door Component, Accuride 1234 Hinge Kit,

  Item Details …

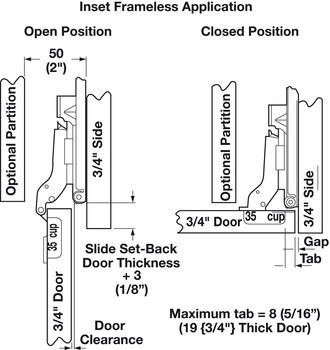

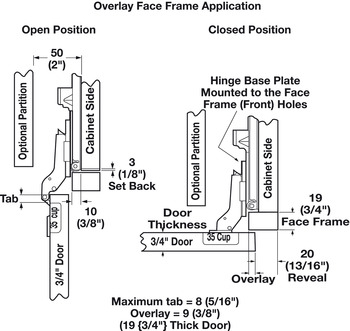

  - Area of application : Inset application for doors up to 20 mm (13/16”) thickness; 35 mm cupOverlay application for doors up to 20 mm (13/16”) thickness; 35 mm cup

  - Material : Steel

  - Color/finish : Zinc plated

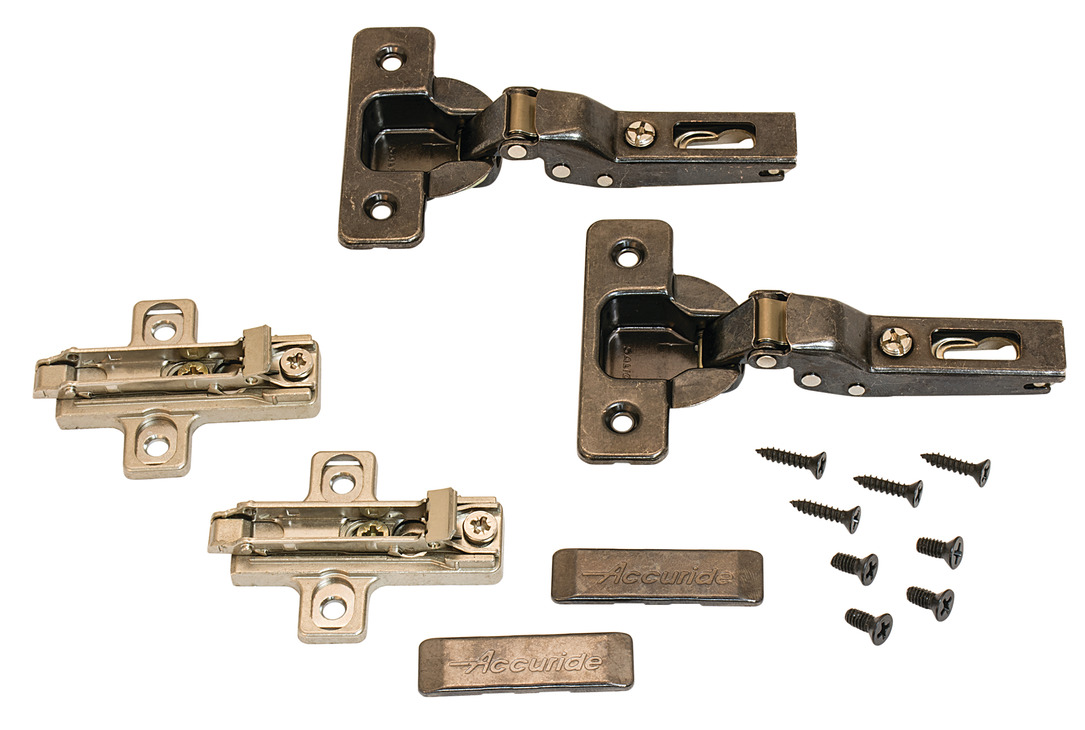

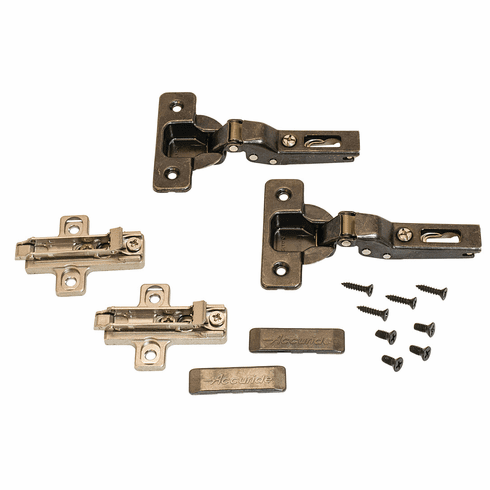

  - Supplied with:

  - 2 Hinges

  - 2 Base plates

  - Mounting hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.100-7.101.pdf

  Hafele 408.24.030, 408-24-030, 40824030, 408.24


  Specifications/Hafele Catalog - Page# FC7.157: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
