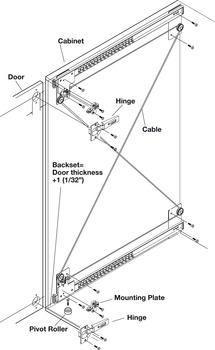

Hafele 408.24.004 Inlay Door Accessory Pack, 40 mm, for Accuride XL Slide Pocket Door 40 mm hinge/plate for 1 door, Free-swinging

Product Information

• Description

  Hafele 408.24.004 Inlay Door Accessory Pack, 40 mm, for Accuride XL Slide Pocket Door
  40 mm hinge/plate for 1 door, Free-swinging



  For door thickness : (3/4 - 1 1/4") 19 - 32 mm



  Supplied with :

  • Mounting instructions
  • (4) 020.05.211 - M4 x 5 mm - Hinge plate mounting screws
  • (4) 015.55.639 - 3.5 x 15 mm - Hinge mounting screws
  • (2) 418.09.300 - Pivot roller
  • (2) 015.31.675 - Pivot roller mounting screw
  • (10) 013.03.304 - Slide mounting screws

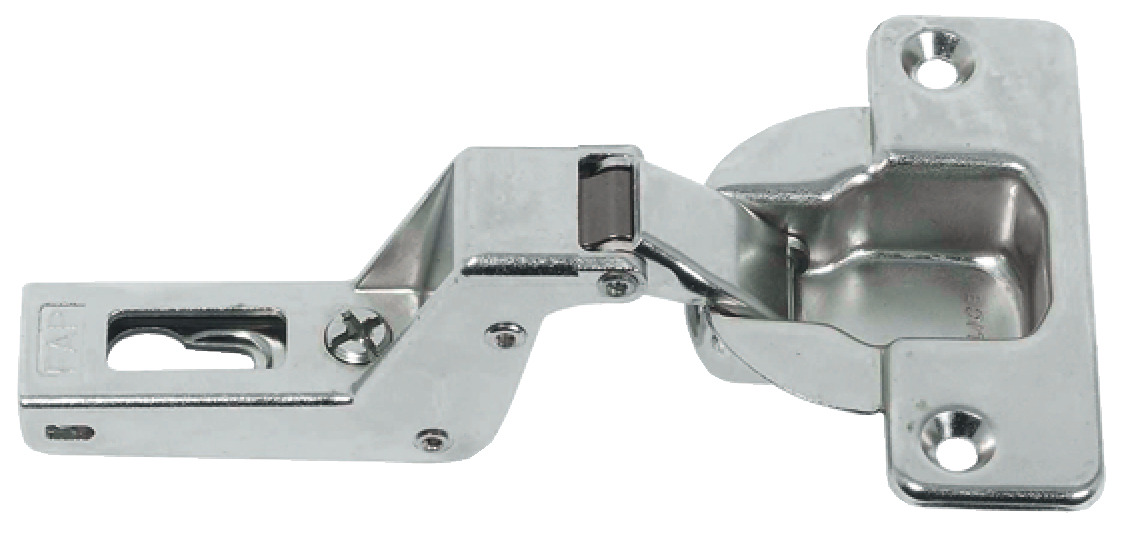

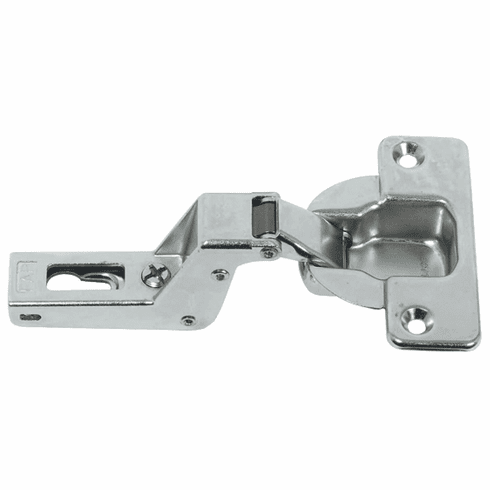

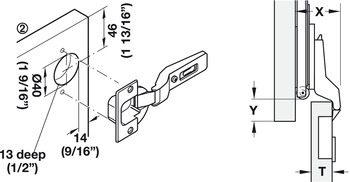

  • (2) 329.04.635 - Duomatic 94º, 40 mm cup hinge, free swinging
  • (2) 329.71.500 - Duomatic clip mounting plate, with single screw adjustment





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.103-7.104.pdf

  Hafele 408.24.004, 408-24-004, 40824004, 408.24
