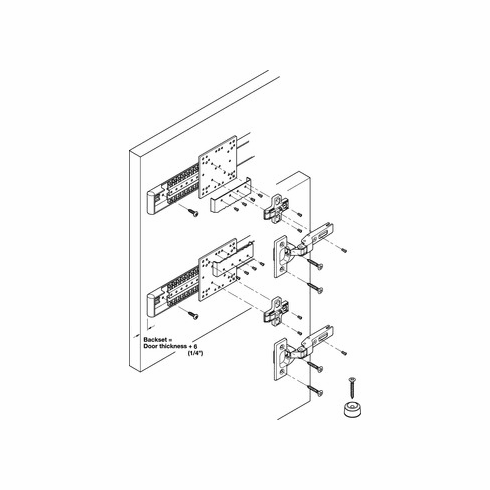

Hafele 408.20.219 Pocket Door, RP60 Complete Set Length 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.20.219

  Product Title: Pocket Door, RP60 Complete Set, Length 16"

  Category: Pocket Door, RP60 Complete Set,

  Item Details …

  - For thick doors 22 mm – 32 mm (7/8– 1 1/4”) use the 40 mm hinge, Item No. 329.05.632, and 40 mm mounting plate, Item No. 329.80.626.For overlay applications; Door thickness from 16 mm – 19 mm (5/8– 3/4”). Maximum overlay = 10 mm (3/8”) use the 40 mm overlay hinge,Item No. 329.05.614, and 40 mm mounting plate, Item No. 329.80.626.

  - Minimum pocket width:

  - Door thickness: 16 – 22 mm (5/8 – 7/8”) = 57 mm (2 1/4”)

  - Door thickness: 22 – 32 mm (7/8 – 1 1/4”) = 67 mm (2 5/8”)

  - Set : Set with tracks

  - For door height : 1067?–?1,524 mm

  - Load bearing capacity : 30 lbs.

  - Overlay distance : Max.: 3/8”

  - For door thickness min. : Inset: 5/8"

  - For door thickness max. : Inset: 7/8"

  - For door height (inches) : 42 - 60"

  - For door thickness : 16?–?22 mm

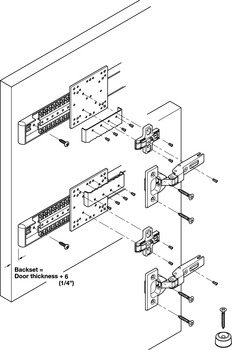

  - Supplied with:

  - 3 ball bearing slides

  - 1 profile rod 63”

  - 3 35 mm hinges

  - 3 mounting plates

  - 2 pinions

  - 6 saddles & bushings

  - 2 racks

  - 2 pivot rollers

  - 12 slide screws (Pan head #8)

  - 14 hinge and rack screws (Flat head #8)

  - 6 hinge mounting plate screws (M4)

  - 12 saddle & bushing screws (M4)

  - 2 pivot roller screws (Raised flat head #6)


  Additional Information …

  For thick doors 22 mm - 32 mm (7/8-1 1/4”) use the 40 mm hinge, Item No. 329.05.632, and 40 mm mounting plate, item No. 329.80.626. For overlay applications; Door thickness from 16 mm - 19 mm (5/8 - 3/4”). Maximum overlay = 10 mm (3/8”) use the 40 mm overlay hinge. Item No. 329.05.614, and 40 mm mounting plate, item No. 329.80.626.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.115



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.96-7.99.pdf

  Hafele 408.20.219, 408-20-219, 40820219, 408.20


  Specifications/Hafele Catalog - Page# FC7.163: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
