Hafele 408.11.407 Ball Bearing Slide, for Pocket Door RP 42/60 Length 404 mm (16"), retraction 324 mm (12 3/4")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.11.407

  Product Title: Ball Bearing Slide, for Pocket Door RP 42/60, Length 404 mm (16"), retraction 324 mm (12 3/4")

  Category: Ball Bearing Slide, for Pocket Door RP 42/60,

  Item Details …

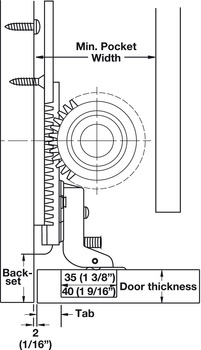

  - Minimum pocket width: (Door thickness: 16 - 22 mm (5/8 - 7/8”) = 57 (2 1/4”) or Door thickness: 22 - 32 mm (7/8 - 1 1/4”) = 67 mm (2 5/8”))

  - Material : Steel

  - Color/finish : Black

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.112



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.96-7.99.pdf

  Hafele 408.11.407, 408-11-407, 40811407, 408.11


  Specifications/Hafele Catalog - Page# FC7.160: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet

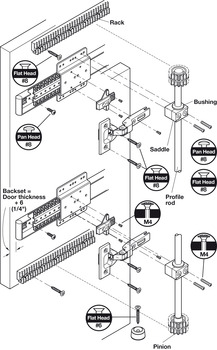

• Required Products & Optional Accessories

  Optional Accessories:



  • Pivot Roller, RP 42/60
  • Profile Rod, RP 42/60
  • Rack, RP 42/60
  • Pinion Wheel, RP 42/60
