Hafele 407.90.010 Planofit Door Straightener, black trim and cover caps, max height 2400 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 407.90.010

  Product Title: Straightening fitting, Planofit, For Wood Doors, 94 1/2" door height; black

  Category: Straightening fitting, Planofit, For Wood Doors

  Item Details …

  - Adds rigidity and prevents warping and twisting

  - Can be installed in new doors or retrofitted into existing doors

  - To straighten warped doors

  - Installation of two fittings per door is recommended

  - Not recommended for hard wood

  - For door thickness min. : 5/8"

  - Material : Threaded rod: Steel, galvanizedTensioner: Zinc alloy, brightTrim strip, cover caps and retaining plate: Plastic

  - Supplied with:

  - 2 Threaded rods

  - 2 Trim strips

  - 4 Tensioners

  - 2 Square nuts

  - 2 Hexagon nuts

  - 4 Cover caps (for open-type tensioner and closed-type tensioner)

  - 8 Retaining plates

  - 4 Lock washers


  Additional Information …

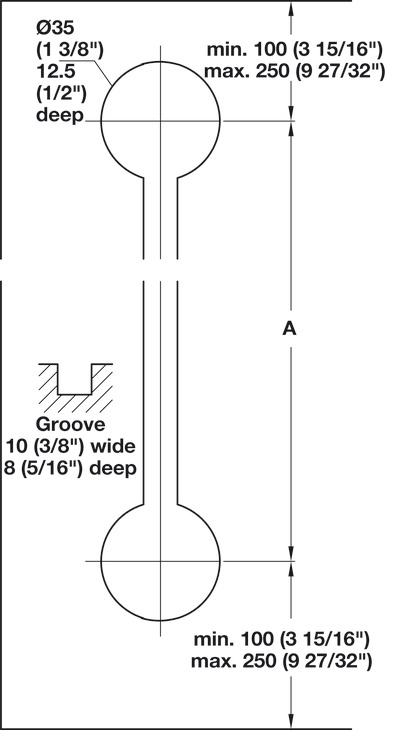

  Order 1 set per door. The threaded rod as well as the trim strip are shortened proportionally, depending on the door height, to change the distance between the hole centers. Open-ended 10 mm wrench is needed for adjustment.

• Data Sheet

  Detailed Data Sheet
