Hafele 407.58.003 HAWA-Bifold-30, set for 2 doors

Product Information

• Description

  Hafele 407.58.003 HAWA Bifold 30, set
  2 Panel

  Additional items required to complete installation:
  Upper Track, pre-drilled, door weight up to 80 kg
  Lower Guide Channel, Pre-drilled


  Load bearing capacity : 2 door system max per leaf: (88 lbs) 40
  4 and 6 door systems max per door leaf: (66 lbs) 30 kg

  For door thickness : (1 - 1 3/4") 26 - 45 mm

  For door width : Max: (23 5/8") 600 mm

  Installation : For 2, 4 and 6 door installation
  Fittings are surface mounted, no rabbeting or grooving required
  Two door application can be installed without lower guide channel

  Features : Without upper track and lower guide channel

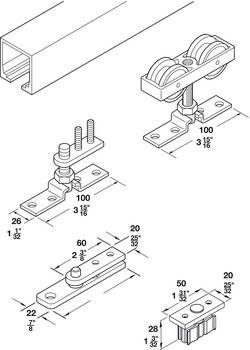

  Supplied with : Double roller running gear
  Suspension plates
  Upper and lower pivot
  Butt hinges
  Height adjusting pin
  Stop bracket
  Lower guide plate (for 4 or 6 panel sets)



  Optional items:
  But Hinge,


• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.156-1.157.pdf

  Hafele 407.58.003 HAWA-Bifold-30, set for 2 doors


  • Hardware > Hardware Accessories
  • Hardware,Hafele,50-500
  • Brand: Hafele
  • Part#: 407.58.003
  • Condition: new
