Hafele 406.02.063 Coplanar Door, EKU Frontino 20 H FS for Base Cabients, Complete Set For base cabinets, For internal cabinet width 1600-1799 mm (5' 3" - 5' 10 13/16")
Product Information
Description
Manufacturer: Hafele
Item: 406.02.063
Product Title: Coplanar Door, Hawa Frontino 20 H FB, set, For base cabinets, For internal cabinet width 1600–1799 mm (5' 3" - 5' 10 13/16")
Category: Coplanar Door, Hawa Frontino 20 H FB, set, For base cabinets
Item Details …
- Three-way door adjustment
- Pre-mounted running system allows for minimal installation time
- Integrated soft opening and soft closing to prevent door slam
- Doors slide smoothly and quietly, and sit flush when in the closed position
- Door can be fully opened to allow access to the complete cabinet contents
- no door offset
- easy and quick planning and installation
- no cabinet preparation required
- one fitting system for top and bottom running application
- excellent running properties
- Number of doors : 2.00
- Soft closing mechanism : Stopper system with soft closing mechanism integrated in running system
- For door thickness : 19?–?25 mm
- For door width : ?1,200 mm
- For door weight : ?20 kg
- Installation depth, top : 270.00 mm
- Running gear guided by : Ball bearing
- For door thickness max. : 1"
- For cabinet width : Max: (3' 3 3/8") 1000 mm
- For door thickness min. : 3/4"
- Door weight max. : 44 lbs
- Cabinet version : wall units, sideboards, base units, with 2 symmetrical door leaves or for one single doors and drawers, for example
- Area of application : For wall units/base units, sideboards
- For door height : ?1,000 mm
- Door stopper : Stopper system with soft closing mechanism integrated in running equipment
- Material/finish : AluminiumRollers: Plastic
- Installation depth, bottom : 270.00 mm
- Distance from handle to door edge min. : 35.00 mm
- Max. distance from handle to door edge : 41.00 mm
- Installation : Running gear and tracks for screw fixing

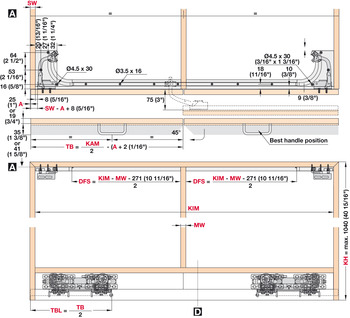

- Installation reference : Highboard/sideboard version: Install running gear bottom runningWall unit version: Install running gear top runningHandle height depends on door thickness: 35–41 mmDistance between handle and door edge: Handle height
- Support flange connection : 3-point guidance
- Type of opening : flush
- Number of doors per system max. : 2
- Supplied with:
- Running gears
- Runners
- Stopper
- Soft closing mechanism
- Running and guide track
Additional Information …
Both doors must have identical dimensions.Data Sheet
