Hafele 405.71.019 Sliding Door Hardware, Hawa Combino 50 H MF, Set

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.71.019

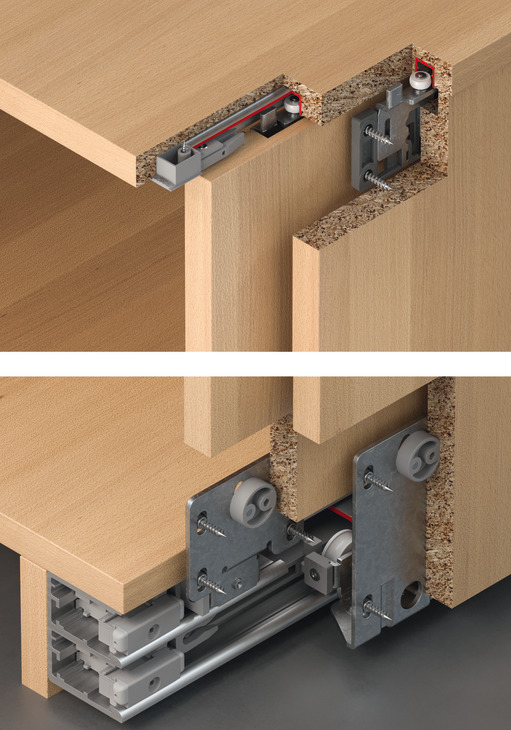

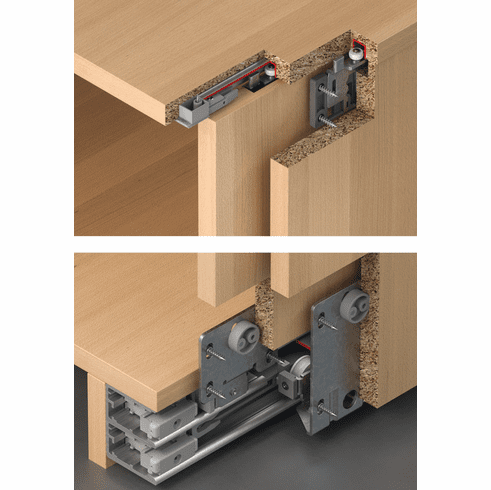

  Product Title: Sliding Door Hardware, Hawa Combino 50 H MF, Set, For bottom running wooden doors, for door weights up to 50 kg, for door heights up to 2400 mm, Mixfront, for 2 doors, door thickness 25 mm

  Category: ,

  Item Details …

  - Area of application : For 2 doors

  - Door stopper : Top clip-in door stopper and bottom soft and self closing mechanism

  - Adjustment facility : +4/-2 mm eccentric screw on running gear

  - Order reference

  - Please order running and guide track separately. Please also order the intermediate stopper for 3 doors separately.

  - Supplied with:

  - 4 running gears

  - 4 guides

  - 8 door stoppers with clip-in door stopper

  - 4 track end pieces

  - Mounting material

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions



• Brand PDF Catalogs

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Guide Track, Bright Aluminum for Screw Mounting (choose one):


  • for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 2.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 3.5 m for Hawa Combino/Regal MF/VF, Hawa Divido, Length: 6 m

    405.30.026 405.30.036 405.30.061

    Click to order Click to order Click to order
