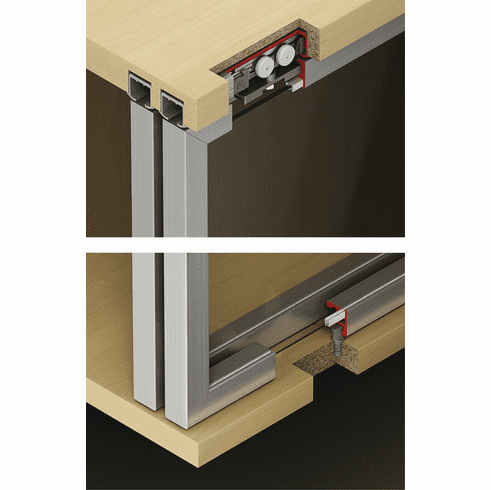

Hafele 405.00.007 Sliding Door Hardware, EKU Clipo 26 GR Inslide, set For 2 doors, For Door Weights up to 55 lbs, For Door Heights Up to 78 3/4"

Product Information

• Description

  Manufacturer: Hafele
  Item: 405.00.007

  Product Title: Sliding Door Hardware, Hawa Clipo 26 GR IF, set, for sliding doors with aluminum frame, for door heights up to 2000 mm, For 2 doors, For Door Weights up to 55 lbs, For Door Heights Up to 78 3/4"

  Category: Sliding Door Hardware, Hawa Clipo 26 GR IF, set, for sliding doors with aluminum frame, for door heights up to 2000 mm, For 2 doors, For Door Weights up to 55 lbs, For Door Heights Up to 78 3/4"

  Item Details …

  - Number of doors : 2.00

  - Soft closing mechanism : with clip-in door stopper

  - For glass thickness : 4 mm

  - For door thickness : 20 mm

  - For door width : ?800 mm

  - For door weight : ?26 kg

  - Running position : Top

  - Number of rollers : 4.00

  - Height adjustment : ±2 mm

  - Running gear guided by : Friction bearing

  - For door material : aluminium frame

  - Door width max. : 31 1/2"

  - For door width (inches) : Max. 31 1/2"

  - For door thickness min. : 5/32"

  - Door weight max. : 57.2 lbs.

  - Height adjustable :

  - Door height min. : 78 3/4"

  - For min. glass thickness (inches) : 3/16"

  - Cabinet version : with medium-sized door wings

  - Set : Set without tracks

  - Area of application : For 2 doors

  - For door height : ?2,000 mm

  - Door stopper : Top clip-in door stopper, for sliding into single top running track

  - Material/finish : Rollers: Plastic

  - Adjustment facility : Height adjustment: ±2 mm, Height ±2 mm

  - Number of doors per system max. : 2

  - Order reference

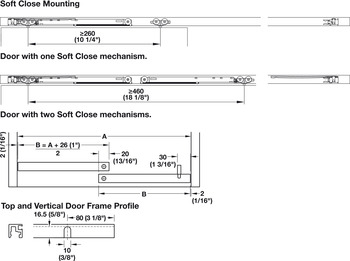

  - Please order one soft closing mechanism for each door for soft opening and soft closing action separately with pitch lengths of running gears from 460 mm and above.

  - Supplied with:

  - 4 running gears

  - 2 floor guides

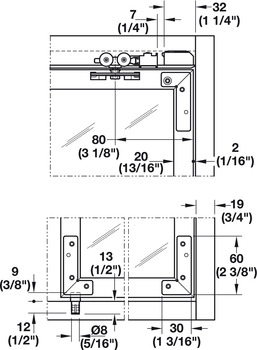

  - 8 corner brackets (4 each left/right)

  - 1 door follower

  - 4 door stoppers with clip-in door stopper

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.87



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.78-7.79.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Upper Track, Pre-Drilled, for Screw Fixing (choose one):


  • for Hawa Clipo, 2.5 m for Hawa Clipo, 3.5 m

    405.00.622 405.00.623

    Click to order Click to order



  Optional Accessories:



  • Aluminium frame profile, Hawa Clipo 26 GR IF
  • Bottom Door Frame Profile, For Assembling Strut of Aluminum Frame
  • Glass Gasket, Hawa Clipo 26 GR & Regal A 25 GR 40/22 Forslide
  • Service Port for Upper Track, Plastic
  • Soft Close Mechanism, Optional
  • Worktop jig, for Hawa Clipo 26 GR Auminum frame door
