Finetta F-Line32 23A Fitting Set, 2400mm x 600mm x 20mm: Hafele part# 403.25.071
Product Information
Description

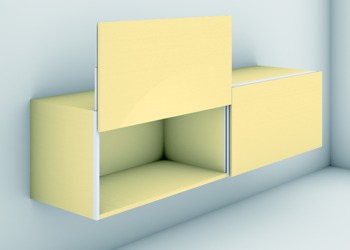

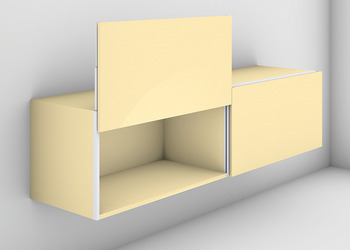

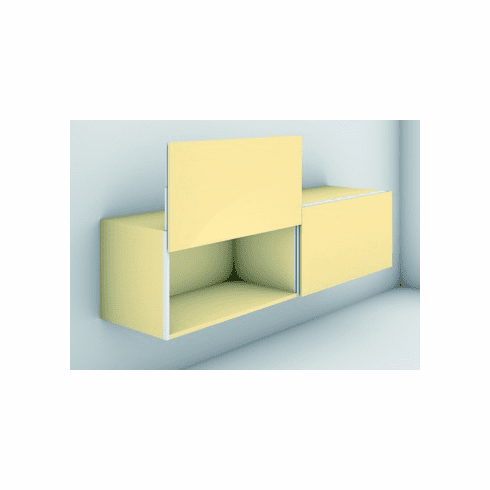

Hafele 403.25.071 Vertical Sliding Door Hardware, Mover System
For one door, Cabinet Height: 23 5/8", door width: 94 1/2", door weight: 46.2-50.7 lbsCabinet height : (23 5/8") 600 mm Door width : (94 1/2") 2400 mm Door weight : (46.2-50.7 lbs.) 21-23 kg Side panel thickness : 19/20 mm Side panel thickness : 19/20 mm Adjustment : Vertical: 3 mm (1/8") Note : The 480 mm (19) version is a special order and will have a longer lead time
Application : For 1 doors Door weight : (46.2-50.7 lbs.) 21-23 kg Cabinet height : (23 5/8") 600 mm Door width : (94 1/2") 2400 mm Supplied with : 1 supporting aluminum profile
1 pair of sliding track, extending

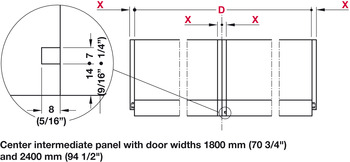

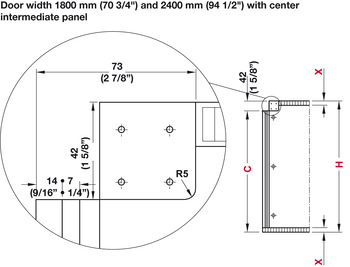

1 sliding track for center intermediate panel (only for door widths 1,800 (70 3/4) and 2,400 mm (94 1/2))
Mounting material
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_7.90-7.91.pdf
Please contact us for more information about this productCatalog Pages
