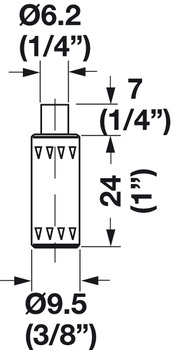

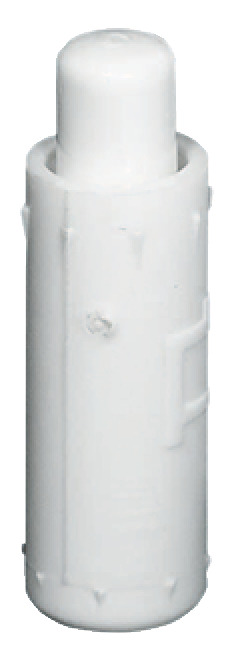

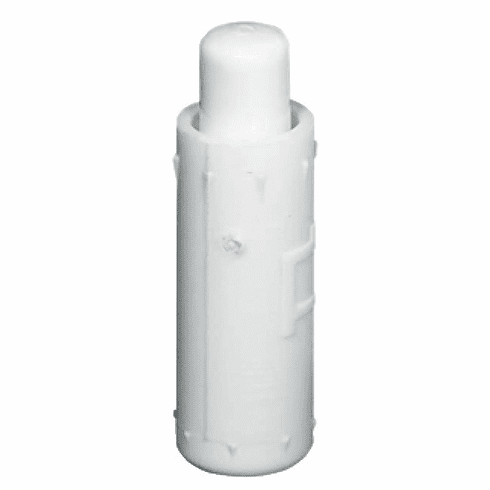

Hafele 402.90.006 Guide Bolt, with Spring Loaded Pin Maximum door weight: 22 lbs.

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.90.006

  Product Title: Guide Bolt, with Spring Loaded Pin, Maximum Door Weight: (22 lbs) 10 kg

  Category: Guide Bolt, with Spring Loaded Pin, Maximum Door Weight: (22 lbs) 10 kg

  Item Details …

  - With spring-loaded pin

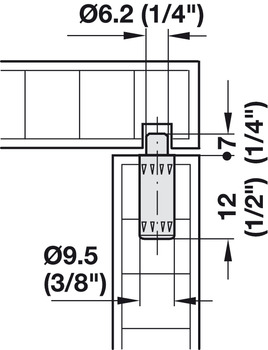

  - Installation : For press fitting into drill hole

  - Color/finish : White

  - Door weight max. : 22 lbs

  - Material : Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.9



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.4-7.4.pdf

  Hafele 402.90.006, 402-90-006, 40290006, 402.90


  Specifications/Hafele Catalog - Page# FC7.4: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
