Hafele 402.33.034 Slido F-Line21 12/20D Fitting Set, for 2 doors with 4 clip-in door stoppers
Product Information
Description
Manufacturer: Hafele
Item: 402.33.034

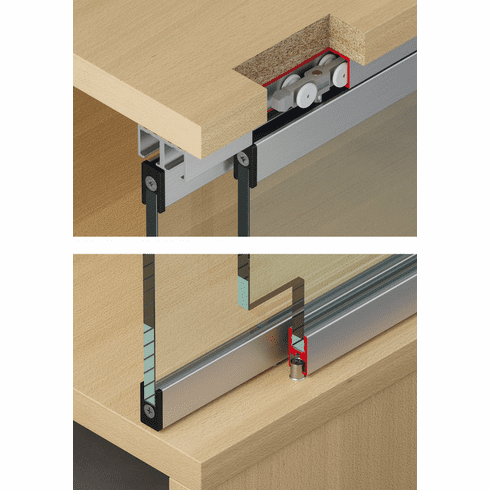

Product Title: Sliding Door Hardware, Slido F-Line21 12D/20D, Set, Infront, for 2 doors, with clip-in door stopper
Category: Sliding Door Hardware, Slido F-Line21 12D/20D, Set,
Item Details …
- Top clip-in door stopper or as soft closing mechanism, for sliding into running track
- Glass retaining profile for glue mounting, running gear for sliding in from the front edge and screwing to the top glass retaining profile
- For door thickness : 6 mm
- For door weight : ?20 kg
- Note on door thickness : (1/4 - 5/16")
- For door width (inches) : > 350 mm (13 3/4") with soft closing mechanism; ? 530 mm (20 27/32") with soft closing and opening mechanism
- Length (inch) :
- Area of application : For 2 doors
- Door stopper : Top clip-in door stopper
- Adjustment facility : ±2 mm (3/32") on running gear using hexagonal nut
- Installation reference : Pitch length of running gears must be min. 245 mm (9 11/16") with soft closing mechanism on one side, min. 425 mm (16 3/4") with soft closing mechanism on both sides.
- Order reference
- Please order running and guide tracks separately.
- Please order the following sets for cabinets with 3 doors: 1 set for 1 door and 1 set for 2 doors.
- Supplied with:
- 4 running gears
- 4 door stoppers with clip-in door stopper
- 1 door follower
- 2 sets of runners, cover caps and mounting aid
Additional Information …
Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side, min. 425 mm with soft closing mechanism on both sides.Data Sheet
