Hafele 402.31.039 Sliding door fitting, Hafele Slido F-Line31 60A, set

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.31.039

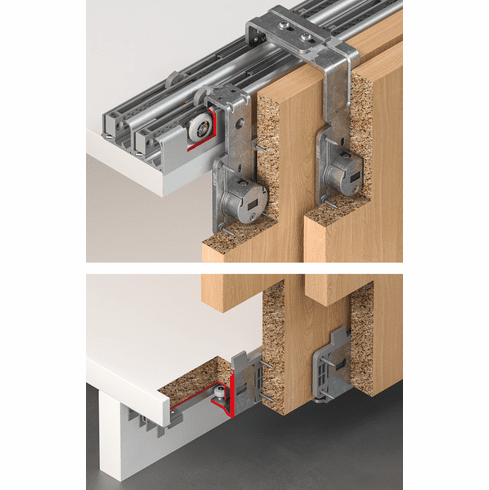

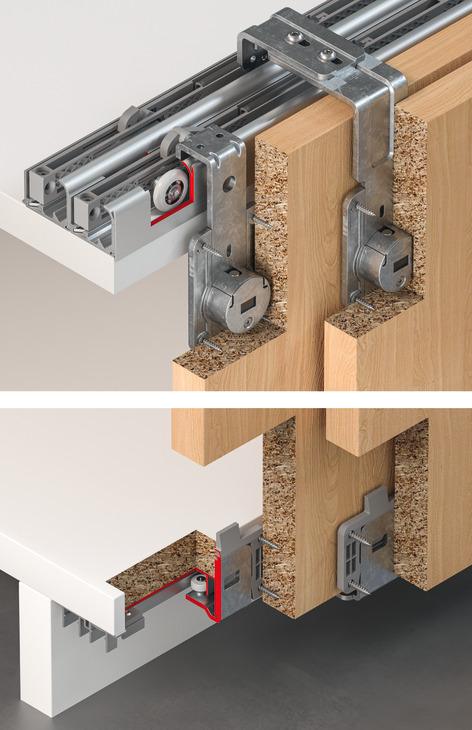

  Product Title: Sliding door fitting, Häfele Slido F-Line31 60A, set, Vorfront, for wooden sliding doors with top running door leaves, connection facility to e-drive, for door weights up to 60 kg, Vorfront, for 3 doors, with soft and self closing mechanism on both sides

  Category: ,

  Item Details …

  - Area of application : For 3 doors

  - Door stopper : Top clip-in door stopper or soft and self closing mechanism, for sliding into running track

  - Material/finish : Housing: Zinc alloyRunning gear: SteelMounting plate: SteelGuide: Steel

  - Adjustment facility : Height adjustment: -2 – 2 mm, Height ±2 mm on running gear using adjusting wheel

  - Door adjustment via : adjusting wheel

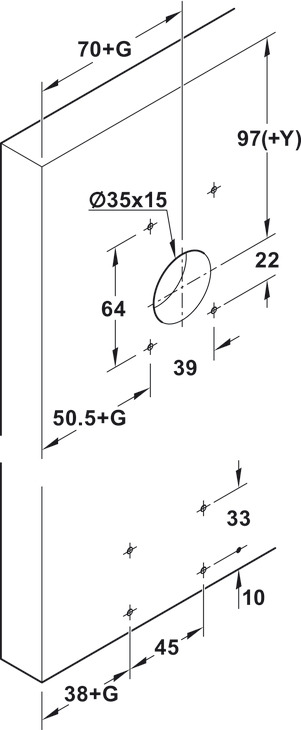

  - Door processing : With recess

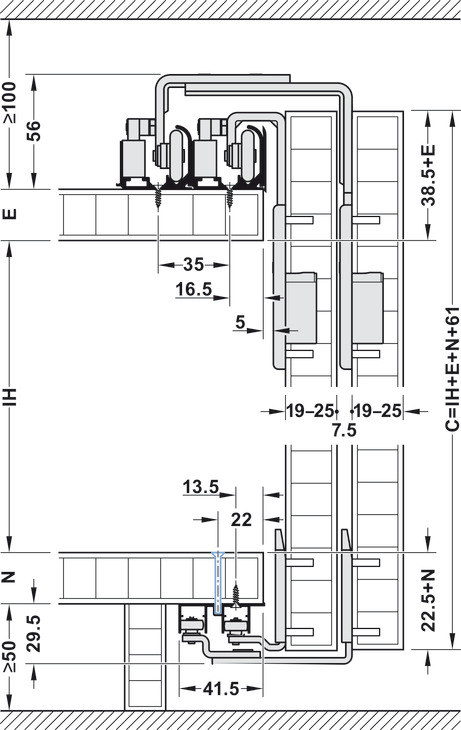

  - Installation reference : guide and running gear for screw fixing to door,Track for screw fixing to cabinet from outside,Double guide track (optional) also from the inside

  - Type of opening : linear

  - Number of doors per system max. : 1 to 3

  - Order reference

  - Please order running and guide tracks separately.

  - Please order soft closing mechanism set for centre door for 3-leaf door separately.

  - Supplied with:

  - 6 running gears

  - 6 guides

  - 6 door stoppers (4 stoppers)

  - 6 soft and self closing mechanisms

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Line31 40A/60A installation instructions

  Installation instructions for e-drive

  LGA quality certificate for Slido F-Line31 40/60 A

  Häfele Slido F-Line31 40A / 60A|Installation
