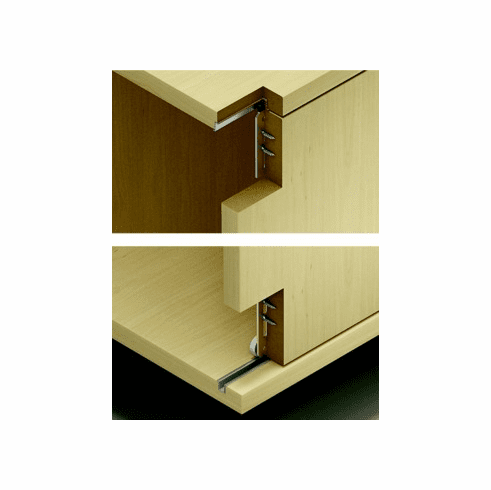

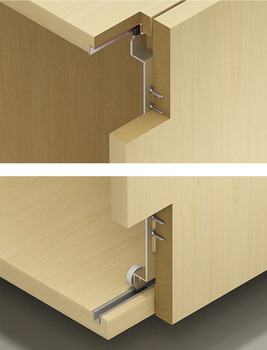

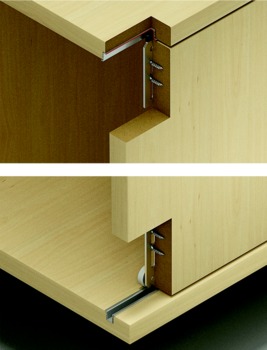

Hafele 402.27.001 Sliding Door Hardware, S 8 One IF/VF 20, set For Bottom Running, Wood Sliding Door, for Door Weights up to 44 lbs, Overlay Mounting, for One Door, Cranked running gear, Vorfront (overlay)

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.27.001

  Product Title: Sliding Door Hardware, Häfele Slido F-Line19 20A, For Bottom Running, Wood Sliding Door, for Door Weights up to 44 lbs, Overlay Mounting, for One Door, Cranked running gear, Vorfront (overlay)

  Category: Sliding Door Hardware, Häfele Slido F-Line19 20A, Infront/Vorfront for easy installation, for single-track wooden sliding doors, for door weights up to 20 kg

  Item Details …

  - For single-track, wood sliding doors

  - Friction bearing guided running gear

  - Guides and running gear and screw-mounted

  - Track is groove-mounted

  - Tool-less door mounting via spring guide bolt

  - Elegant clip-on aluminum fascia

  - Number of doors : 1.00

  - For door weight : ?20 kg

  - Running position : Bottom

  - Number of rollers : 1.00

  - Running gear guided by : Friction bearing

  - For door material : wood

  - Door weight max. : 44 lbs.

  - Cabinet version : with single-track sliding doors

  - Set : Set without tracks

  - Area of application : For single-track, wooden sliding doors

  - Material/finish : Running gear: SteelGuide: Steel

  - Installation : Running and guide track inside the body, for groove in

  - Number of doors per system max. : 1

  - Order reference

  - The running tracks and guide tracks are not included in the set. Please order separately.

  - Supplied with:

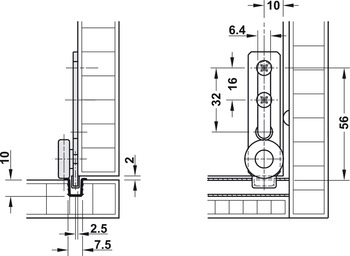

  - 2 x top guide (straight)

  - 2 x bottom running gear (straight)

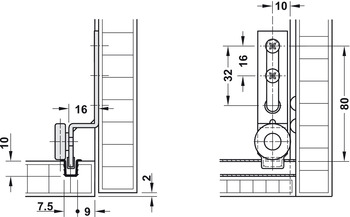

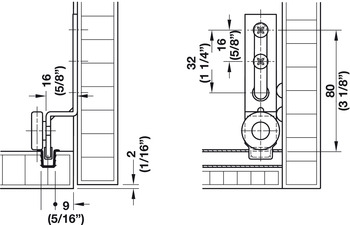

  - 2 x top guide (cranked)

  - 2 x bottom running gear (cranked)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.15



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.110-7.115.pdf

  Hafele 402.27.001, 402-27-001, 40227001, 402.27


  Specifications/Hafele Catalog - Page# FC7.43: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Running and Guide Track, Aluminum, Häfele Slido F-Line19 20A (choose one):


  • 16' 4 7/8" (5 m)

    402.27.605

    Click to order
