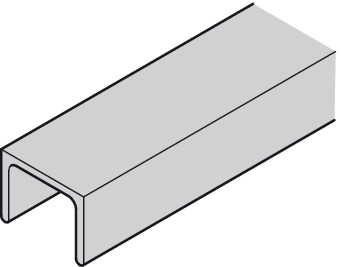

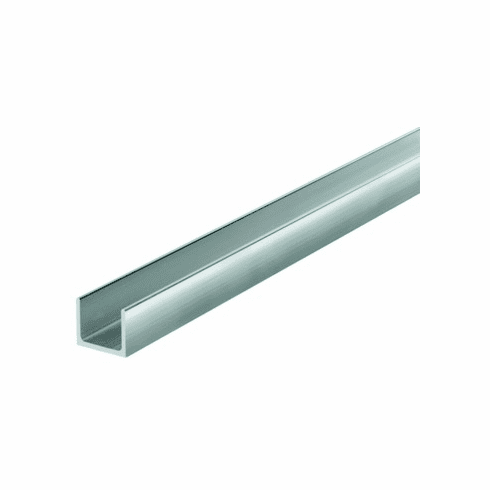

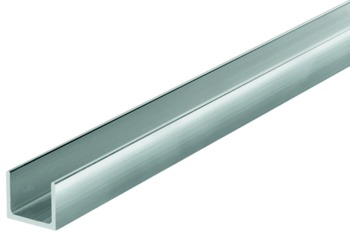

Hafele 402.23.803 Single Upper Guide, Rolluna Infront for Slido Classic VF, 11' 5 13/16"; 3.5 m

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.23.803

  Product Title: Single Upper Guide, top, single-track, un-drilled, Häfele Slido F-Line15 55A, 11' 5 13/16"; 3.5 m

  Category: Single Upper Guide, top, single-track, un-drilled, Häfele Slido F-Line15 55A

  Item Details …

  - Product type : Single Upper Guide

  - Version : single runningnon-perforated

  - Color/finish : blank

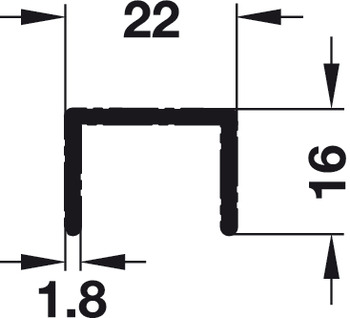

  - Dim. (W x H) : 22 x 16 mm

  - For door weight : ?55 kg

  - Door weight max. : 121 lbs

  - Area of application : Top

  - Track version : Single

  - Suitable for : Häfele Slido F-Line

  - Position : top

  - Material : Aluminum

  - For door thickness : ?16 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.55



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.56-7.57.pdf

  Hafele 402.23.803, 402-23-803, 40223803, 402.23


  Specifications/Hafele Catalog - Page# FC7.73: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
