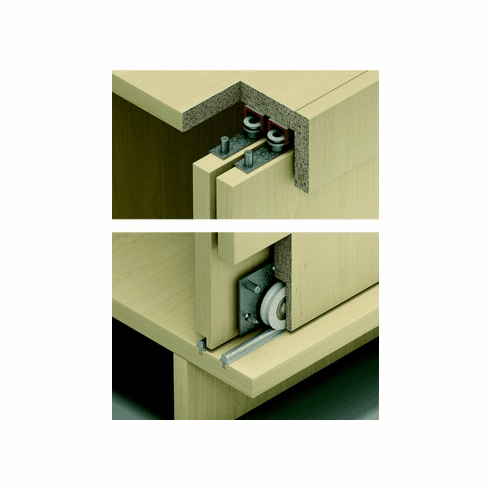

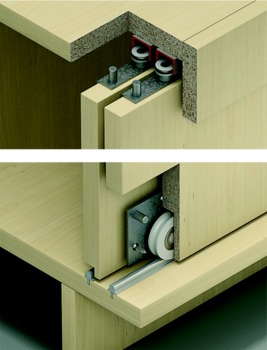

Hafele 402.23.001 Sliding Door Hardware, Rolluna Infront, Set For Bottom Running Wood doors, for Door Weights up to 121 lbs., for 3 doors

Product Information

• Description

  Manufacturer: Hafele
  Item: 402.23.001

  Product Title: Sliding Door Hardware, Slido F-Line15 55A, set, For Bottom Running Wood doors, for Door Weights up to 121 lbs., for 3 doors, without height adjustment

  Category: Sliding Door Hardware, Slido F-Line15 55A, set, For Bottom Running Wood doors, for Door Weights up to 121 lbs.

  Item Details …

  - Excellent running characteristics due to large diameter rollers.

  - Separate running and guide tracks eliminate door thickness restrictions

  - Height adjustment :

  - For door thickness : 16?–?19 mm

  - For door weight : ?55 kg

  - Cabinet version : with bottom running door wings

  - Set : Set without tracks

  - Area of application : For door weights up to (121 lbs.) 55 kg

  - Material/finish : Rollers: PlasticAxis: Steel

  - Running position : Bottom

  - Number of rollers : 1.00

  - Running gear guided by : Ball bearing

  - Adjustment facility : Height ±2 mm

  - Running position : Bottom

  - Type of opening : linear

  - Number of doors per system max. : 2 to 3

  - Order reference

  - The top guide and bottom running tracks are not included in the set. Please order separately.

  - Supplied with:

  - 6 running gears

  - 3 buffers

  - 6 anti-derailment devices (2 for rear doors/4 for front door)

  - 6 guides

  - 2 door stoppers


  Additional Information …

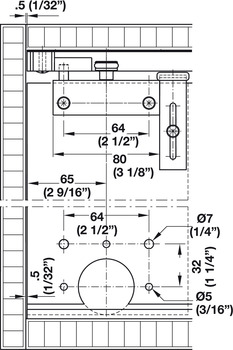

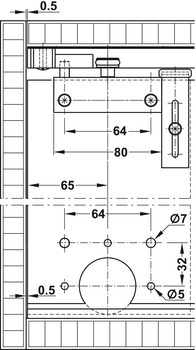

  The position of the running gears depends on the choice of running tracks. Please note the drilling patterns in the installation instructions.
