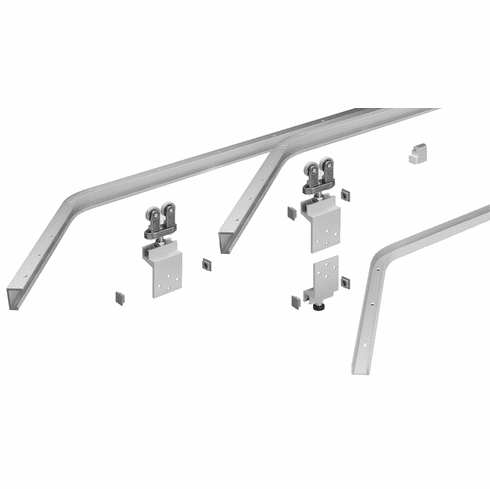

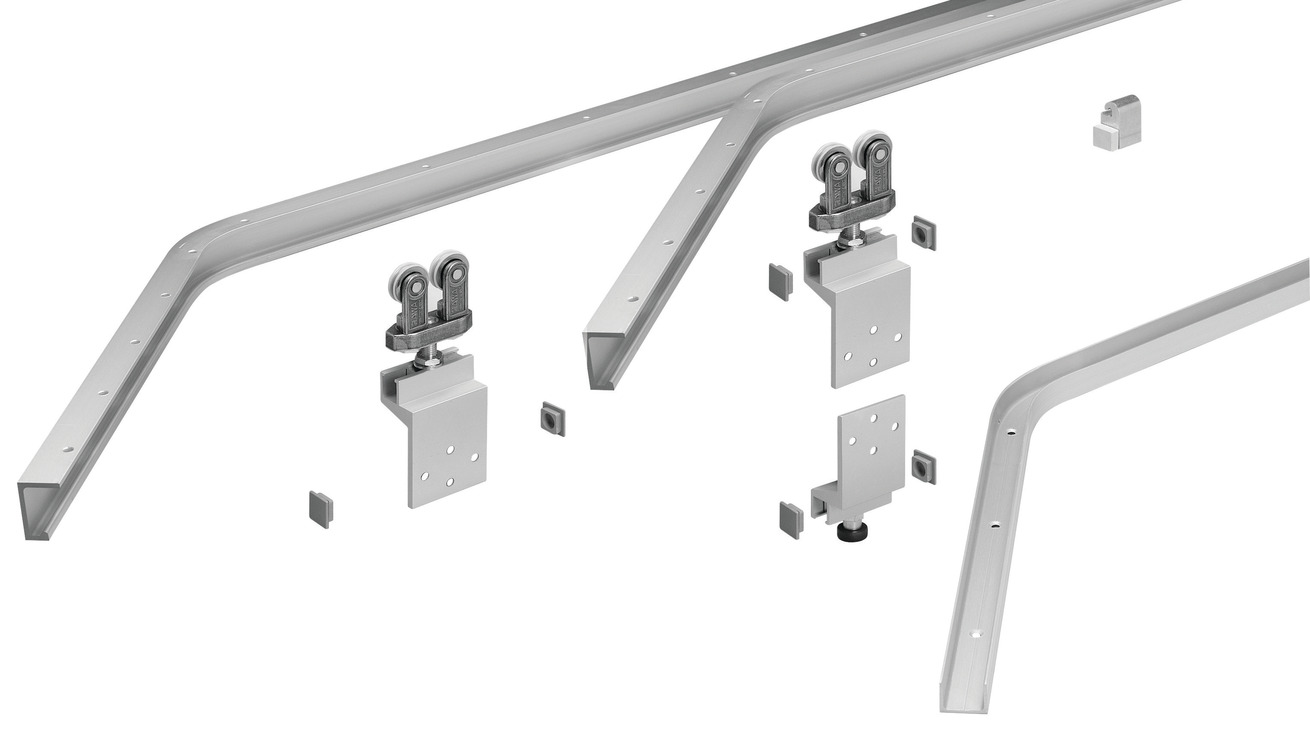

Hafele 400.71.002 HAWA Aperto Track Set, 3.5 meters

Product Information

• Description

  Hafele 400.71.002 Sliding Door Hardware, Hawa Aperto 40/F, set
  For Cabinet Applications

  For 1 door, with installation instructions

  Door weight : ‰¤ (88 lbs.) 40 kg

  For door thickness : (3/4" - 1) 19 - 25 mm

  Height adjustment : ± (5/64") 2 mm

  For door width : (15 3/4 - 35 7/16") 400 - 900 mm

  For door height : ‰¤ (102 3/8") 2600 mm



  Order reference :

  • Please order guide and running track separately.
  • Order Planofit straightening fitting to stabilise the doors.
  • 110° Concealed hinges for door mounting in parking area are not supplied. Please order separately.





• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.167-1.169.pdf
