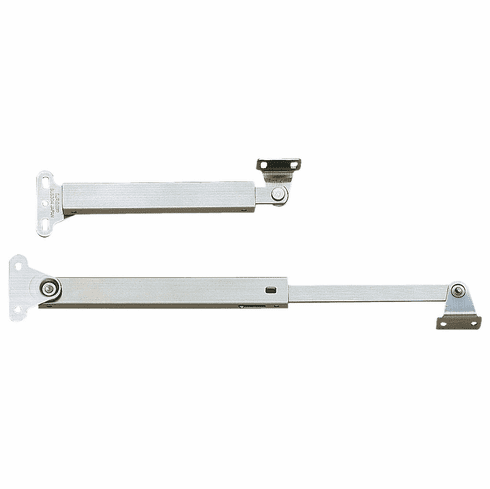

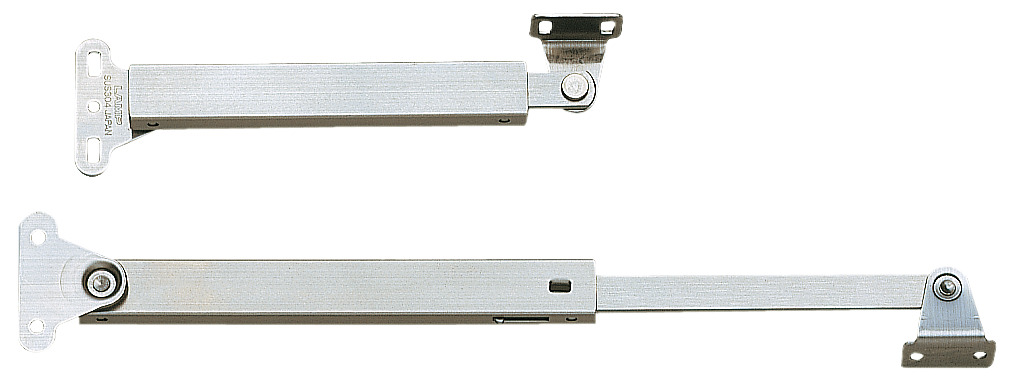

Hafele 373.89.001 Lid Stay, 304 Stainless Steel 10 5/8" length, 12 5/8"-19 11/16" door height

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.89.001

  Product Title: Lid Stay, 304 Stainless Steel, 10 5/8" length, 12 5/8"-19 11/16" door height

  Category: Lid Stay, 304 Stainless Steel,

  Item Details …

  - Only one stay required per lid

  - Holds lid in the open position

  - Lift up lid to release

  - Material : 304 Stainless Steel

  - For lid weight : ?15 kg

  - Load bearing capacity : Max. 33 lbs

  - For lid height : 320?–?500 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.150



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.107-9.107.pdf

  Hafele 373.89.001, 373-89-001, 37389001, 373.89


  Specifications/Hafele Catalog - Page# FC9.112: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
