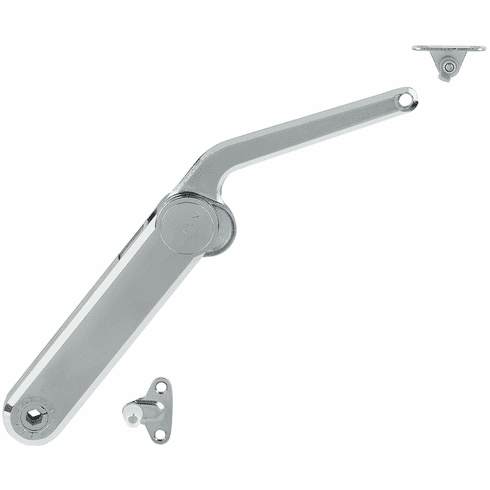

Hafele 373.69.302 Swing-Up Fitting, Maxi, Complete Set, for Aluminum Frames Model D, nickel-plated

Product Information

• Description

  Hafele 373.69.302 Swing-Up Fitting, Maxi, Complete Set, for Aluminum Frames
  Model D, nickel-plated



  Material : Fitting: Zinc alloy
  mounting and screw-on bracket: Steel
  cover cap for adjusting screw: Plastic

  Finish : Nickel plated

  Mounting : For left and right hand use

  Installation : Without tools (clip system)

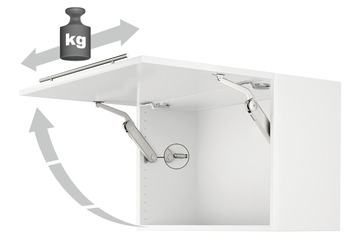

  Adjustment : Holding power adjustment

  Opening angle : 75°, 90° or 110°

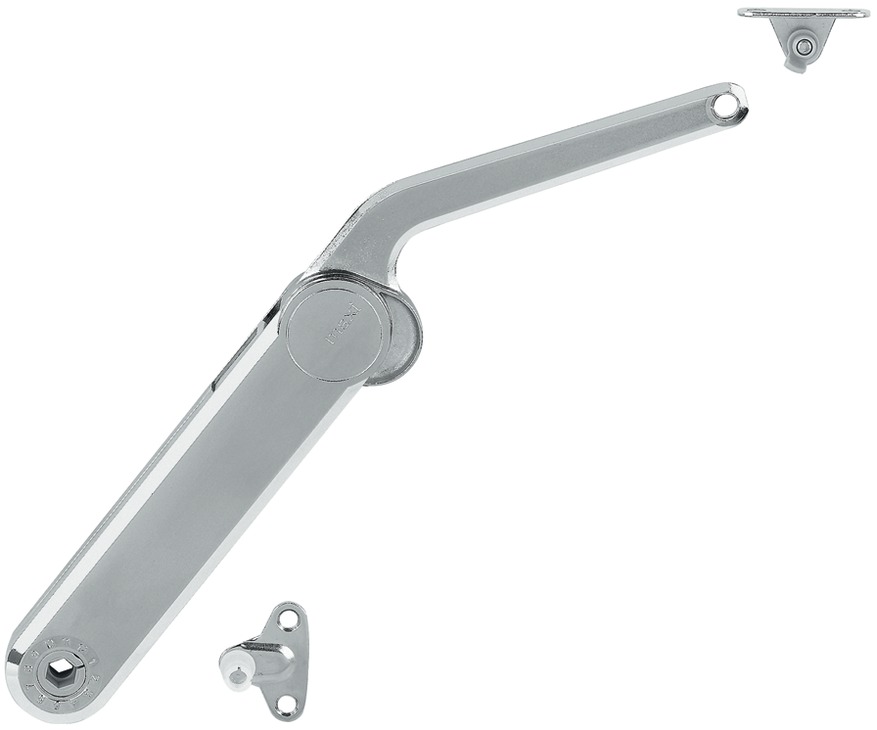

  Supplied with :

  1 flap stay

  1 mounting bracket for cabinet

  1 screw-on bracket for flap (for Euro screws)



  Optional items:
  Screw-on bracket

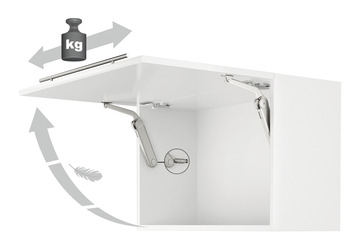

  Soft closing mechanism
  Varianta special screws with countersunk head 5.0 mm
  Hafele 200 110°, for standard applications
