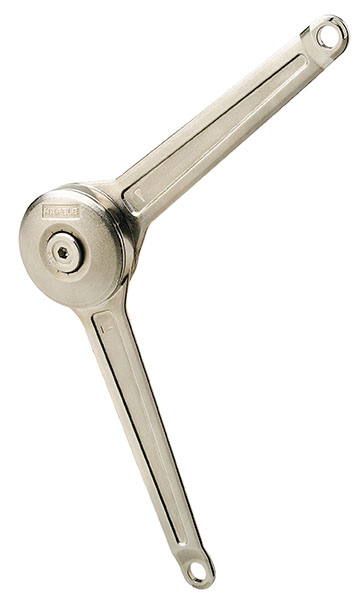

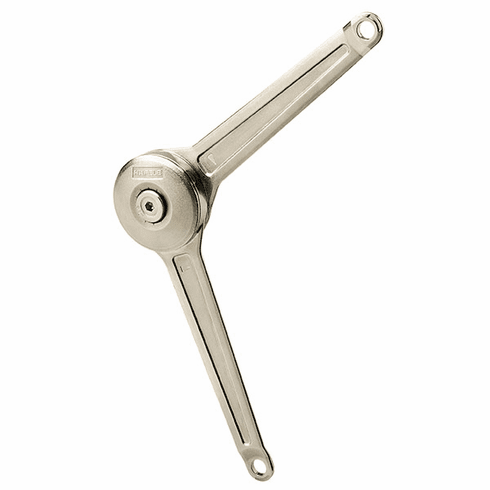

Hafele 373.66.700 Lid stay/flap stay, Duo Forte, Individual Component For wooden flaps or flaps with aluminium frame, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.66.700

  Product Title: Lid stay/flap stay, Duo Forte, Individual Component, For wooden flaps or flaps with aluminum frame, nickel-plated

  Category: Lid stay/flap stay, Duo Forte, Individual Component, For wooden flaps or flaps with aluminum frame

  Item Details …

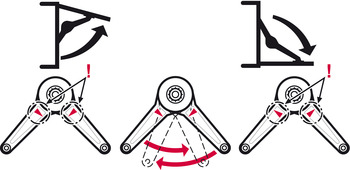

  - Adjusting the arms (overshear) turns the lid stay into a flap stay

  - Little space requirement on cabinet

  - Wear-resistant friction coupling with large adjusting range

  - Area of application : For flaps made from wood or with aluminium frame

  - Version : Individual fitting

  - Lid material : Wood, Aluminum frame

  - For cabinet height : 250?–?700 mm

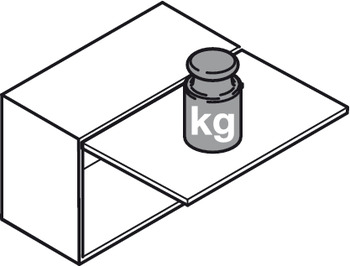

  - For lid weight : ?12 kg

  - Mounting : right and left hand use

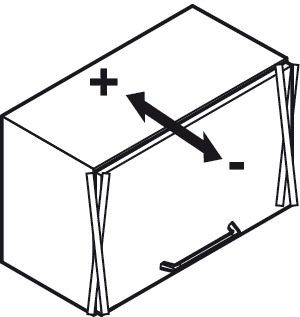

  - Adjustment facility : Holding power

  - Installation : without tools (clip system) on pre-mounted screw-on bracket


  Additional Information …

  Overlaying the arms turns the lid stay into a flap stayLittle space requirement inside the cabinetWear-resistant friction coupling with large adjusting range

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Duo Standard Individual Fitting Mounting Instructions

  LGA - quality certificate for Häfele Duo forte

  LGA - Quality certificate for Duo forte

  Door Weight Calculation Chart



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.109-9.112.pdf

  Hafele 373.66.700, 373-66-700, 37366700, 373.66
