Hafele 373.66.262 Lid Stay/Flap Stay, Duo Standard Complete Set for Wood White, for wood screws

Product Information

• Description

  Manufacturer: Hafele
  Item: 373.66.262

  Product Title: Lid Stay/Flap Stay, Häfele Duo Standard, Complete set, For wood or aluminum framed doors, White, for wood screws

  Category: Lid Stay/Flap Stay, Häfele Duo Standard, Complete set, For wood or aluminum framed doors

  Item Details …

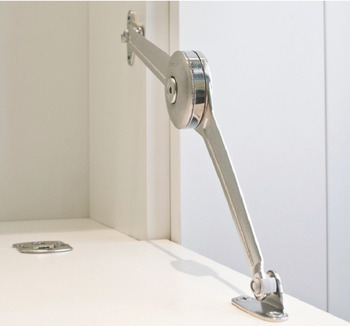

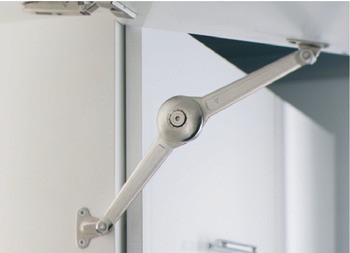

  - Adjusting the arms (overshear) turns the lid stay into a flap stay

  - Can be used as a lid or flap stay

  - Less space is required inside the cabinet

  - Wear-resistant friction coupling with large adjusting range

  - Area of application : For wood or aluminum framed doors

  - Version : Complete set

  - Flap type : one-piece

  - Opening angle : 75?–?110 °

  - For cabinet width : ?45 mm

  - For cabinet height : 200?–?500 mm

  - For lid weight : ?12 kg

  - Mounting : right and left hand use

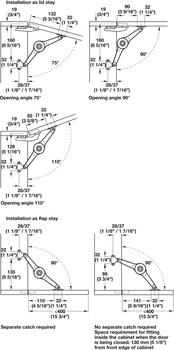

  - Edge distance : 37.00 mm

  - Edge distance : 1 7/16"

  - Adjustment facility : holding power adjustment

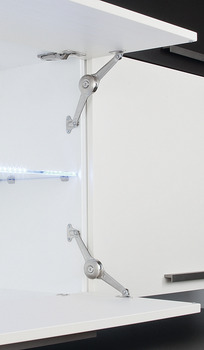

  - Installation reference : Always use two fittings when used as flap stay and include weight of handles

  - Supplied with:

  - Lid stay

  - Mounting bracket for cabinet

  - Screw mount bracket for flap


  Additional Information …

  ImportantMounting location dimensions are critical for this fitting to perform properly
