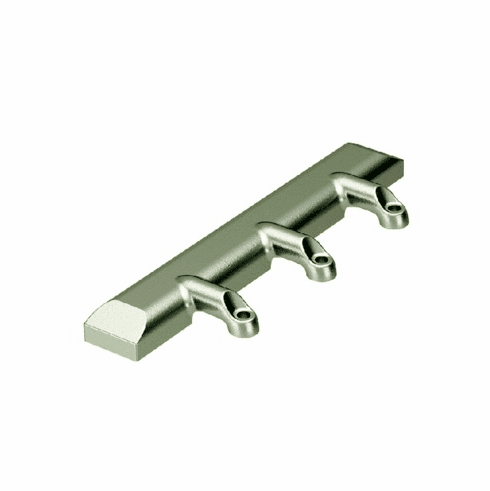

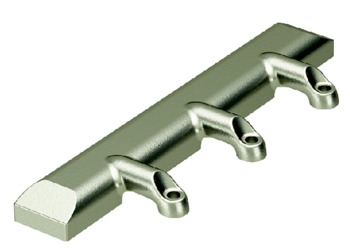

Hafele 372.91.599 Aluminum Door Bracket, for Free Flap 1.7 / 3.15 / Strato

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.91.599

  Product Title: Aluminum Door Bracket, for Free Flap 1.7 / 3.15 / Strato, for (E-)Verso, (E)-Strato and Free flap/swing/up, Zinc alloy, nickel plated

  Category: Aluminum Door Bracket, for Free Flap 1.7 / 3.15 / Strato, for (E-)Verso, (E)-Strato and Free flap/swing/up, Zinc alloy, nickel plated

  Item Details …

  - Fitting is visible with clear and acid-etch glass, back painted glass should be considered.

  - For aluminum frame width min. : 20.00 mm

  - Mounting : For left and right hand use

  - Color/finish : nickel plated

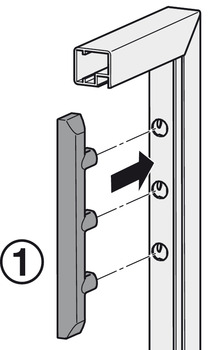

  - Area of application : For mounting Free flap/swing/up, (E-)Verso and (E-)Strato flap fittings on flaps with aluminium frame with frame width 20 mm

  - Suitable for : (E-)Verso, (E)-Strato and Free flap/swing/up

  - Material : Zinc alloy

  - For aluminum frame width : 20 mm

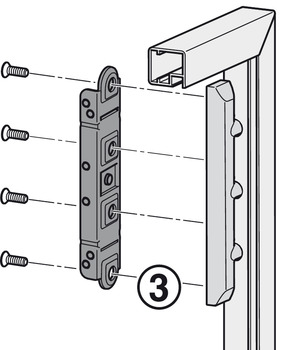

  - Supplied with:

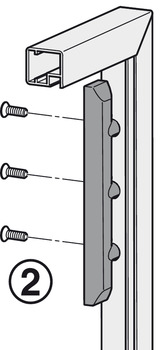

  - Screws (M4 x 10 mm)


  Additional Information …

  Fitting is visible with float glass and frosted glass. An obscure glass or a passe-partout should therefore be used in this case.
