Hafele 372.91.330 Swing-Up Fitting, Free Flap 3.15, Set For large, one-piece flaps made of wood or with aluminum frame, Model D, gray cover caps

Product Information

• Description

  Manufacturer: Hafele
  Item: 372.91.330

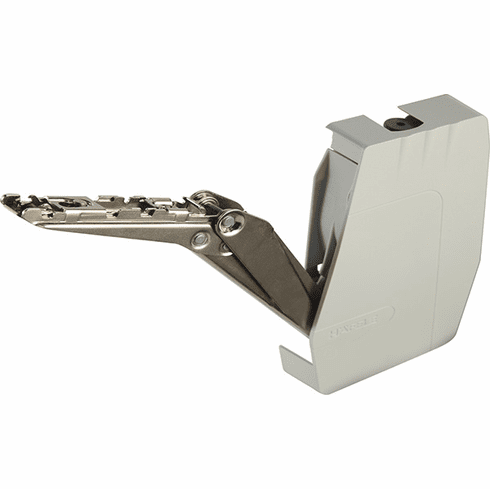

  Product Title: Swing-Up Fitting, Free Flap 3.15, Set, For large, one-piece flaps made of wood or with aluminum frame, Model D, gray cover caps

  Category: Swing-Up Fitting, Free Flap 3.15, Set, For large, one-piece flaps made of wood or with aluminum frame

  Item Details …

  - Extremely little space requirement

  - no additional hinge connection required

  - with integrated soft closing mechanism

  - Flap locks in any position

  - Area of application : for stay flap front panels with or without handle (Push-to-Open), for bigger, one-piece flaps made from wood, glass or with aluminium frame

  - Material : Steel

  - Color/finish : Fitting: Nickel plated

  - Color/Finish cover : Grey

  - Lid material : Wood, Glass, Aluminum frame

  - Flap type : one-piece

  - For cabinet height : 350?–?650 mm

  - Adjustment facility : Height/side/tilting angle of front panel ±15 mm holding power

  - Installation : Fitting for screw fixing with pre-mounted Euro screwsfront panel without tools (clip system) onto pre-mounted screw-on brackets

  - Supplied with:

  - 1 stay flap fitting set (1 piece each left/right, 2 front fixing brackets for wooden flaps or flaps with wide aluminium frame from frame width 45 mm, installation instructions and paper template)

  - 1 set of gray cover caps
