Hafele 372.38.585 Double Door Lift-Up Fitting, Free Fold For 2-piece frame doors, Model: J6fs, Gray

Product Information

• Description

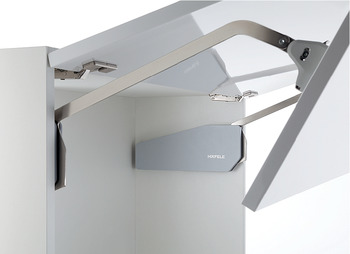

  Hafele 372.38.585 Double Door Lift-Up Fitting, Free Fold
  For 2-piece frame doors , Model: J6fs, Gray

  Additional items required to complete installation:
  Adapter, for Doors with 20 mm (13/16") Aluminum Frame
  Connecting Hinge, for Doors with 20 mm (13/16") Aluminum or Wood Frame


  Technical data :

  Combined door height	Door weight lbs.	Model
  580-650 (22 13/16��-25 9/16��)	4.8-9.7	E1fo
  	9.5-19.4	E3fo
  	13.2-26.8	E4fo
  	23.3-46	E5fo
  650-730 (25 9/16��-28 3/4��)	8.6-17.4	F3fo
  	12.8-25.5	F4fo
  	20.9-41.1	F5fo
  710-790 (27 15/16��-31 1/8��)	7.7-15.8	G3fo
  	11.4-22.7	G4fo
  	19.1-37.8	G5fo
  770-840 (30 5/16��-33 1/16��)	10.8-21.6	H4fo
  	17.6-34.1	H5fo
  840-910 (33 1/16��-35 13/16��)	9.9-19.8	I4fo
  	16.1-32.1	I5fo
  910-970 (35 13/16��-38 3/16��)	9.2-17.6	J4fo
  	15-29.7	J5fo
  960-1010 (37 13/16��-39 3/4��)	8.6-16.7	K4fo
  	14.3-28.2	K5fo
  1000-1040 (39 3/8��-40 15/16��)	13.6-27.1	L5fo



  Application : For 2-piece or aluminum frame doors of equal size

  Adjustment : Height/side/depth of top panel (via concealed hinge) and lower panel (via connecting hinge)
  holding power (via fitting)

  Note :

  Concealed hinges for mounting the door to the cabinet, connecting hinges and adapters for narrow aluminum frames (if applicable) must be ordered separately. The specified models apply to common door heights and weights and taller front panels with lower door weights can also be implemented in individual cases.



  Material : Fitting: Plastic, steel
  Cover cap: Plastic

  Finish : Fitting: Nickel-plated

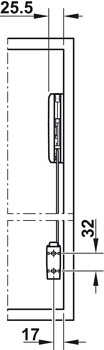

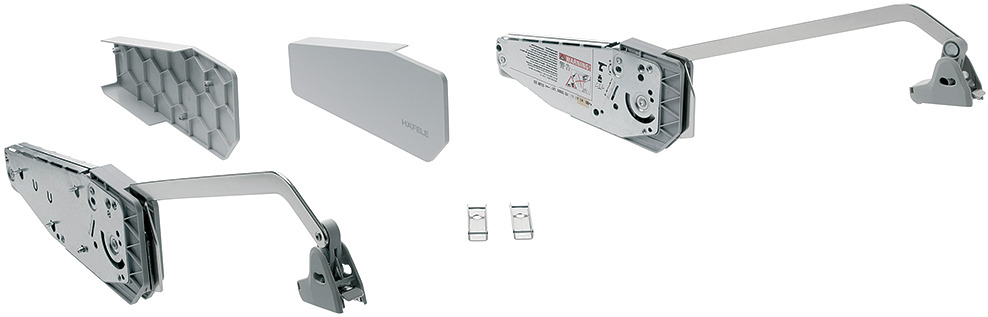

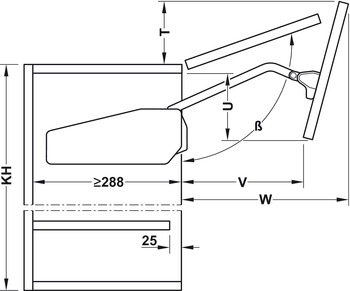

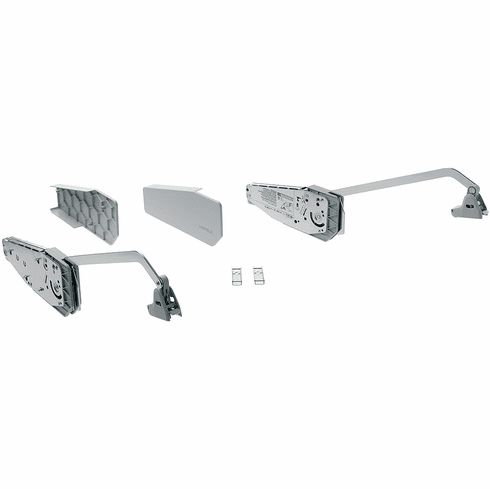

  Supplied with : 2 Fittings (right/left)
  Front mounting material for wood doors or doors with wide
  Aluminum frame
  Installation instructions
  Paper drilling template
  2 Cover caps for fitting (right/left)
