Free Swing, S1SW, gray, 370-500mm, 4-7lb: Hafele part# 372.34.500
Product Information
Description

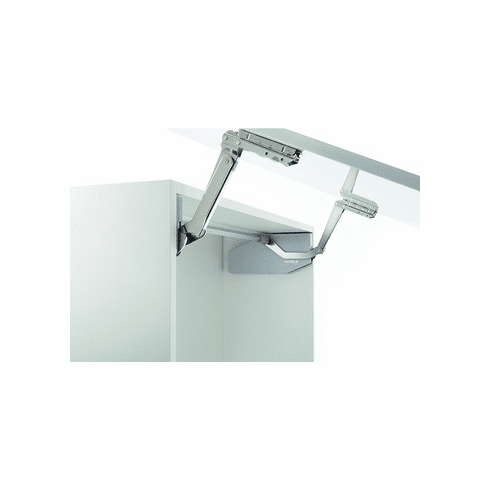

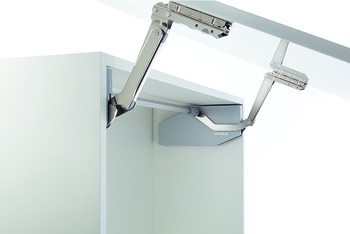

Hafele 372.34.500 Front lift up fitting, Free swing
For one-piece flaps made of wood, glass or with aluminum frame, Flap weight: 4-7 lbs., model S1sw, end cap: whiteTechnical data : Model S1sw S2sw S3sw S4sw S5sw S6sw S7sw S8sw S9sw Door Height Flap weight lbs. 370-500 (14 9/16-19 11/16) 4-7 lbs. - - 7-12 lbs. - - 11-19 lbs. - - 500-670 (19 11/16-26 3/8) - 6-10 lbs. - - 10-19 lbs. - - 18-30 lbs. - 670-800 (26 3/8-31 1/2) - 7-12 lbs. 7-12 lbs. - - 12-22 lbs. - - 18-33 lbs. Application : For one-piece doors made from wood, glass or with aluminum frame Adjustment : Height adjustment 1.5 mm
Side adjustment 1.5 mm
Tilting angle 1.5
Holding powerMaterial : Fitting: Plastic, steel
Cover cap: PlasticFinish : Fitting: Nickel-plated; cover cap gray Supplied with : 1
lift up flap fitting set
(1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template)
1
cover cap set grey, white or anthracite
(1 piece each left/right)
Optional items:
Aluminum Door Bracket, for Free Flap 1.7 / 3.15 / Strato
Drilling jig for side panel
Drilling jig for front fixing bracketsSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.132-9.145.pdf
Please contact us for more information about this productCatalog Pages
