Hafele 372.34.050 Drilling Jig, for Free Swing, Side Wall Suitable for Free swing flap fitting

Product Information

• Description

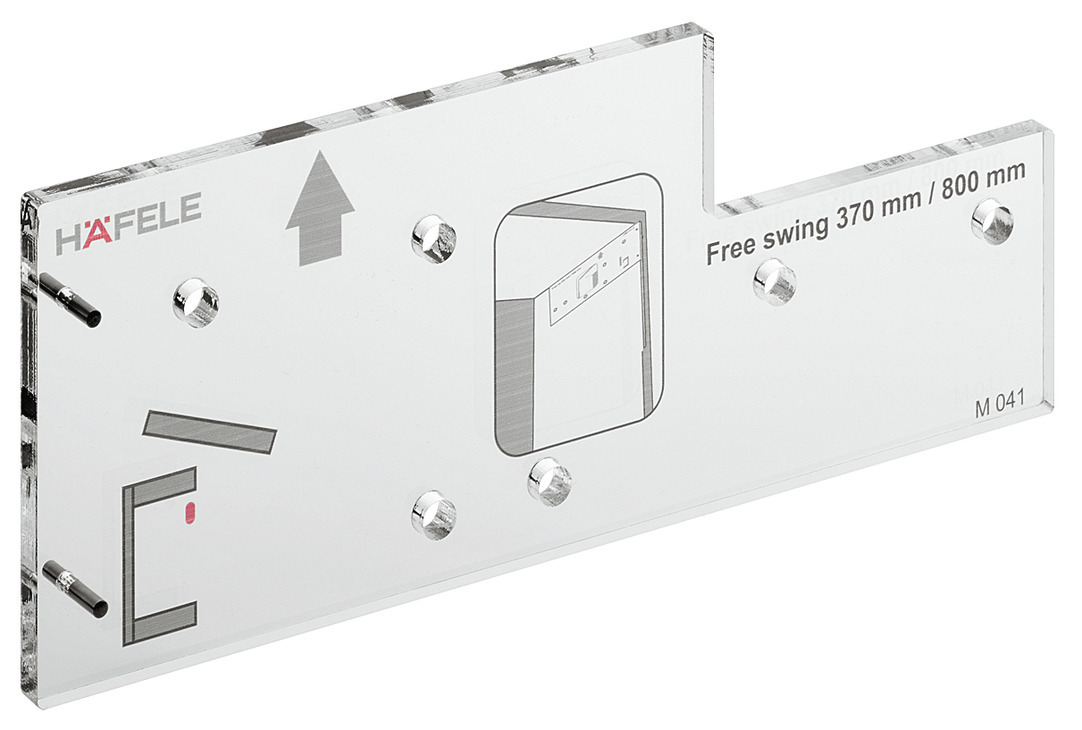

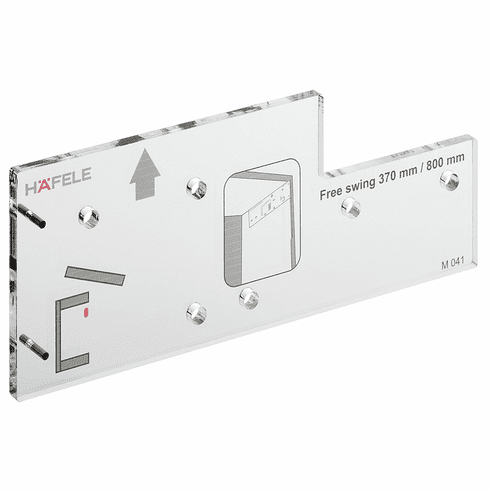

  Hafele 372.34.050 Drilling Jig, for Free Swing, Side Wall

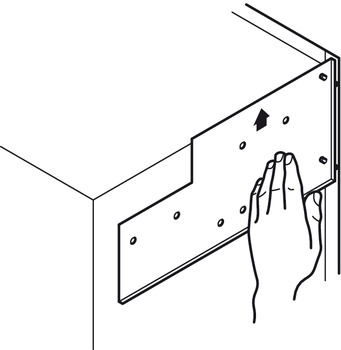

  Suitable for Free swing flap fitting



  Dim. (W x D x H) : 31 x 5 x 13 mm
  (1 1/4" x 3/16" x 1/2")

  Material : Clear plexiglass



  Order reference :

  Please order self centering drill bit 5 mm (Cat. No. 001.25.792) separately.



  Optional items:
  Self centering drill bit for drilling jig
