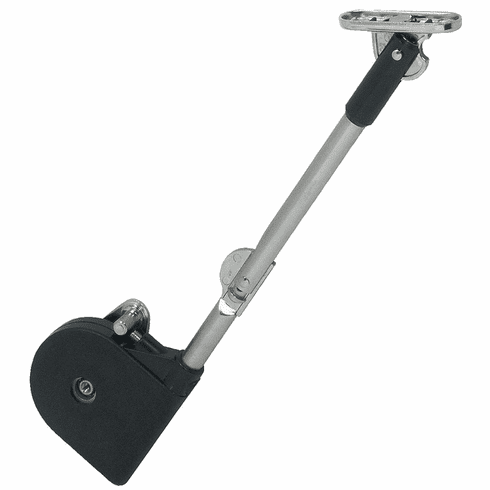

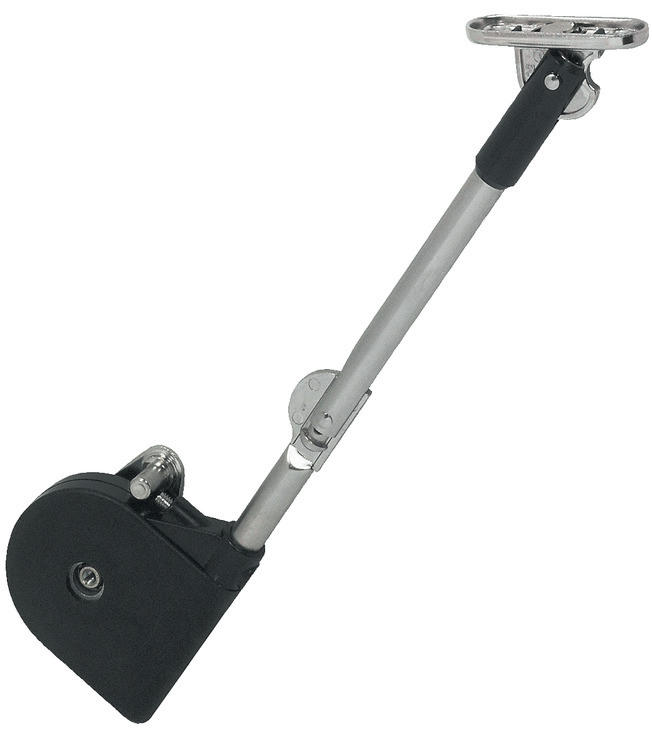

Hafele 365.31.300 Lid Stay, with joint, for wooden flaps Soft & Silent, Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 365.31.300

  Product Title: Lid Stay, with joint, for wooden flaps, Soft & Silent, Black

  Category: Lid Stay, with joint, for wooden flaps, Soft & Silent

  Item Details …

  - Area of application : for wooden flaps

  - Version : With jointWith angular bracket

  - Material : Steel

  - Color/finish : Nickel plated

  - Lid material : Wood

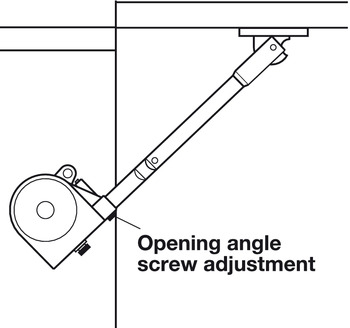

  - Opening angle : 90 °

  - For cabinet width : ?900 mm

  - For cabinet height : 300?–?900 mm

  - For lid weight : 4 kg

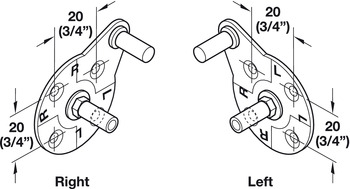

  - Mounting : right and left hand use

  - Installation : Reversible, can be installed left or right

  - Supplied with:

  - Mounting screws
