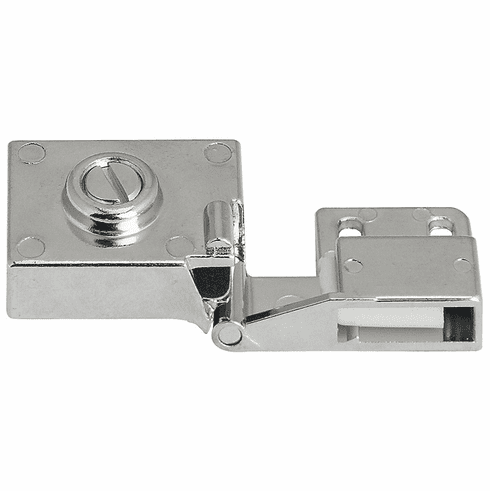

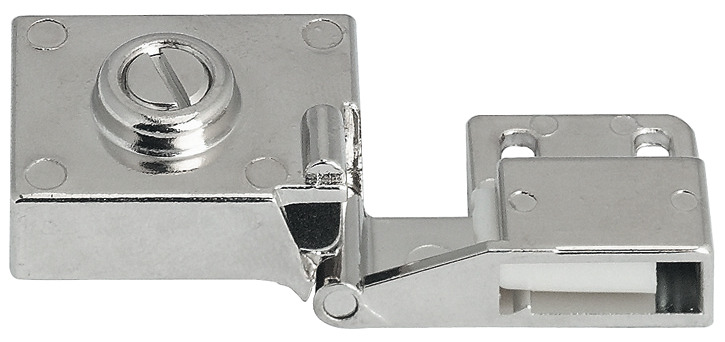

Hafele 361.93.240 Hinge, Opening angle 170 degree, inset mounting Polished chrome

Product Information

• Description

  Hafele 361.93.240 Hinge, Opening angle 170°, inset mounting
  Polished chrome



  Finish : Polished chrome

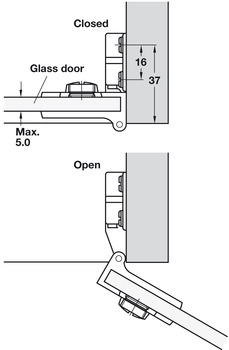

  Application : For inset glass doors

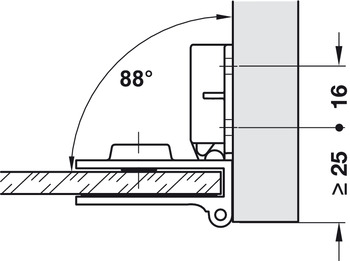

  Opening angle : 170°

  Features : With catch

  Adjustment : Vertical adjustment with oblong holes

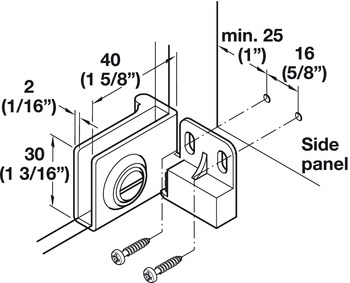

  Mounting : Screw-mounts to side of cabinet

  For door width : Max: (13 3/4") 350 mm

  For door height : Max: (31 1/2") 800 mm

  For glass thickness : Max. (1/4") 6 mm

  Material : Zinc, die-cast





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.154-9.154.pdf

  Hafele 361.93.240, 361-93-240, 36193240, 361.93


  Specifications/Hafele Catalog - Page# FC9.140: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
