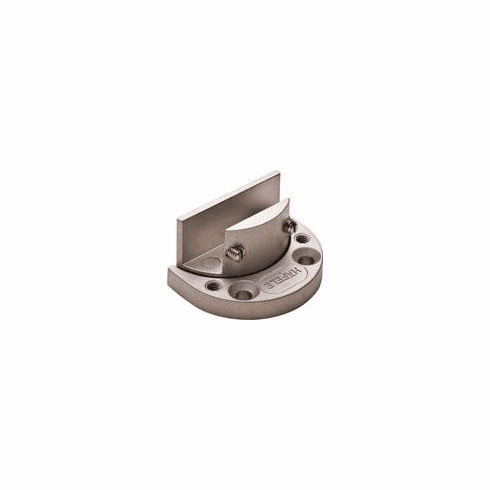

Hafele 361.49.603 Glass Door Hinge, Opening angle 95 degree, inset mounting Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 361.49.603

  Product Title: Glass Door Hinge, Opening angle 95°, inset mounting, Door mounting without glass drilling, Matt nickel

  Category: Glass Door Hinge, Opening angle 95°, inset mounting, Door mounting without glass drilling, Matt nickel

  Item Details …

  - To determine the exact tab distance for your application, please make a trial mounting with 1/4” wood material.

  - Reversible: can be used left or right

  - Furniture Construction : for glass/wood constructions

  - Material : Zinc alloy

  - Color/finish : matt, nickel plated

  - Opening angle : 95°

  - For glass thickness : ?6 mm

  - For glass thickness (inches) : 1/4"

  - For door material : glass

  - Door processing for assembly : without glass drilling

  - Door construction : Inset

  - Door weight min. : 8.8 lbs

  - Area of application : For inset glass doors

  - For door width : ?350 mm

  - For door width (inches) : Max. 13 3/4"

  - For door height : ?800 mm

  - For door height (inches) : Max. 31 1/2"

  - Equipped with : Without catch

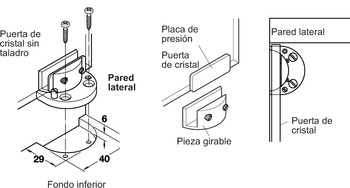

  - Installation : For screw fixing to cabinet base panel/cabinet top panelFor clamping to glass door

  - Door width max. : 350.00 mm

  - Door height max. : 800.00 mm

  - Supplied with:

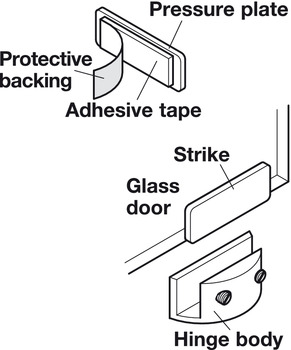

  - with pressure plate
