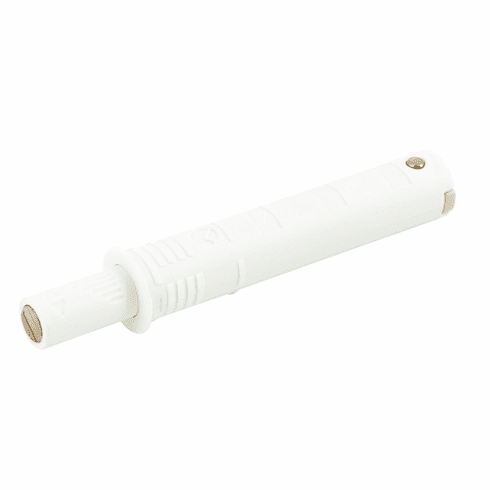

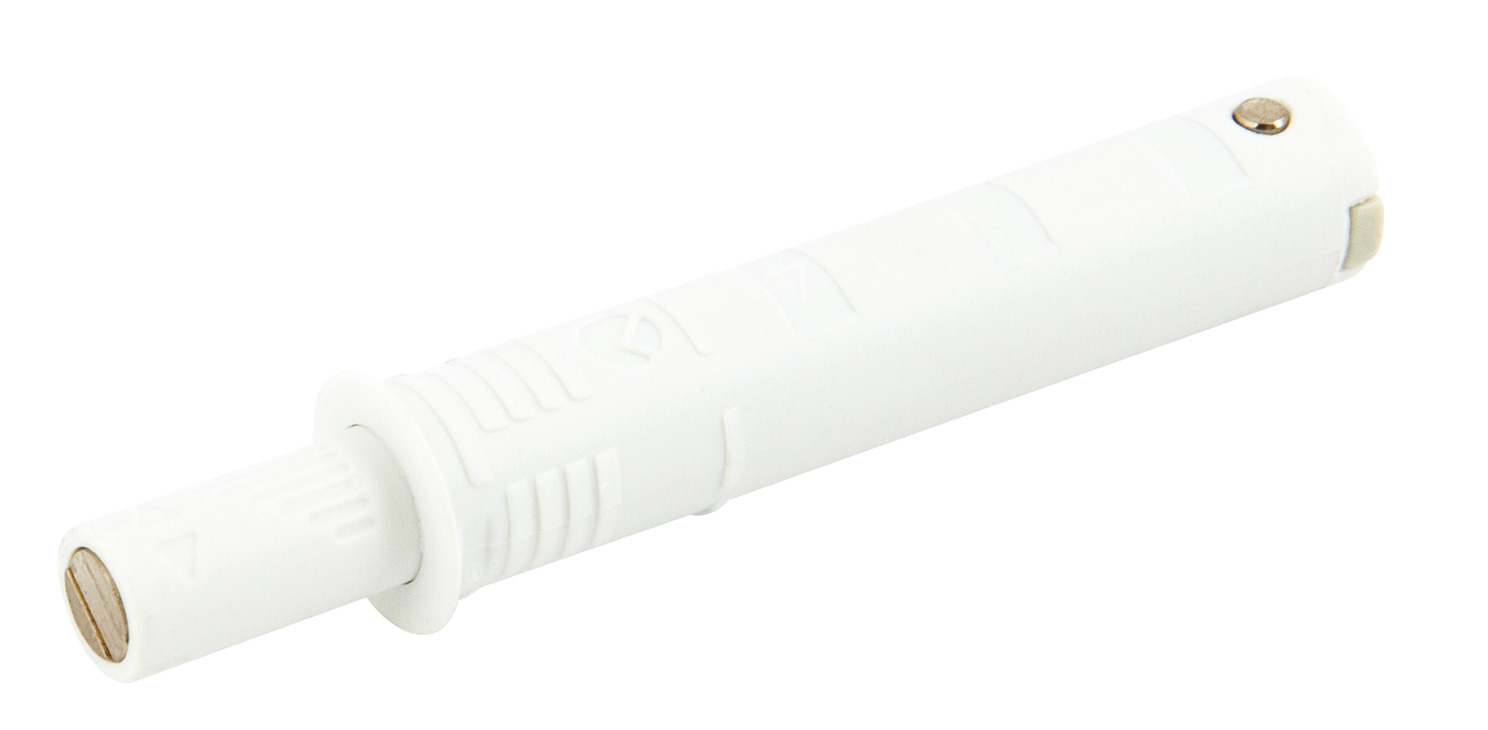

Hafele 356.12.700 Latch, K Push Tech Concealed, Short, With Magnet white

Product Information

• Description

  Hafele 356.12.700 Latch, K Push Tech Concealed, Short, With Magnet
  white



  Application : For cabinets using free-swinging or negative hinges

  Suitable for : Use with a wide range of doors

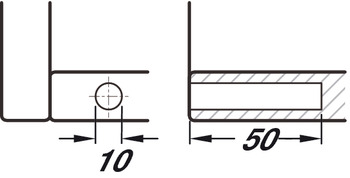

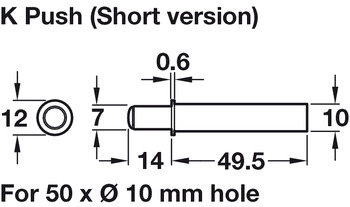

  Mounting : For recess mounting in a 10 mm (3/8��) hole or surface mounting

  Features : With magnet

  Travel : (9/16��) 14 mm

  Material : Engineered plastic



  Order reference :

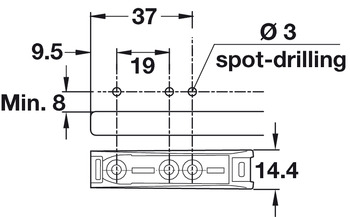

  Order housing and mounting plate fittings separately for surface mounting.



  Optional items:
  Strike, for Magnetic Catch
  K-Push Tech, Installation Tool
  Housing, K Push Tech Concealed, Short
  Mounting Plate, K Push Tech Concealed, Short
