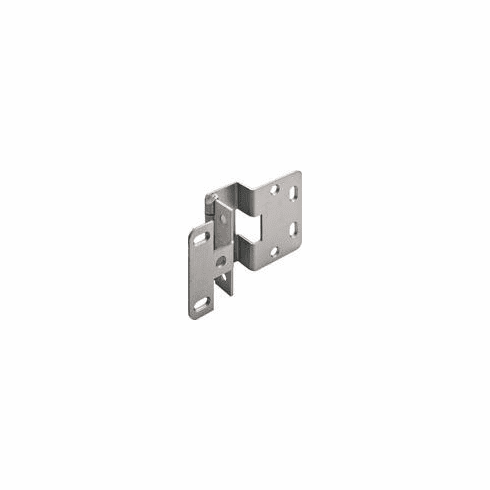

Hafele 354.65.420 Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270 degree, Steel, for 3/4" Door Thickness Dull chrome Plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.65.420

  Product Title: Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270°, Steel, for 3/4" Door Thickness, Dull chrome Plated

  Category: Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270°, Steel, for 3/4" Door Thickness,

  Item Details …

  - Screws not included. Hinges require #8 Wood Screws or 5 mm with 7.8 mm head Euro screws.

  - Industry Standard 2 3/4” five-knuckle hinge

  - Durable .090” steel

  - Non-removable knurled pin

  - Tumbled to remove sharp edges

  - Material : Steel

  - Number of drill holes : 9.00

  - Product type : Five-Knuckle Institutional Hinge

  - For door thickness min. : 3/4"

  - Version : Hospital tips and corners for safetyNon-removable knurled tipTumbled tip to remove sharp edges

  - Crank type : L1

  - Flange shape : rounded
