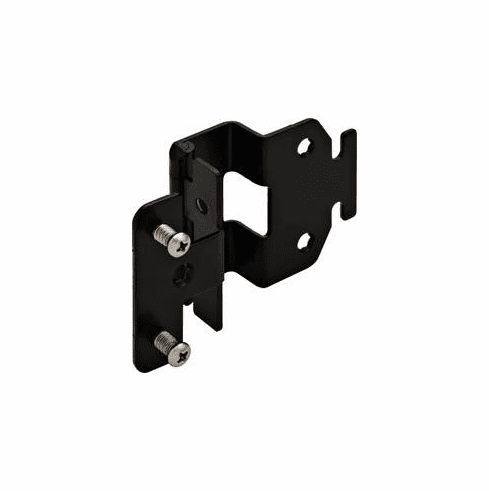

Hafele 354.65.300 Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270 degree, Steel Powder-coated matt black

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.65.300

  Product Title: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, Steel, Powder-coated matt black

  Category: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, Steel,

  Item Details …

  - Hinge knuckles broached for precision pin alignment and smooth operation

  - Hinge leaves punched after forming for precision alignment

  - ANSI/BHMA A-156.9-2001 Grade 1 approved

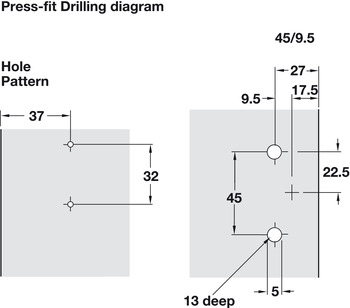

  - Standard drilling equipment can be used

  - Material : Steel

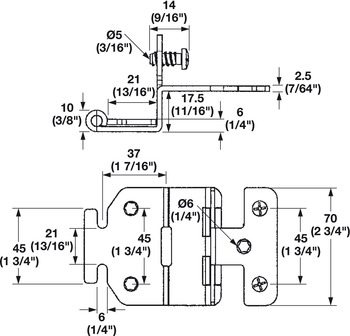

  - Total width : 121.00 mm

  - Flange thickness : 2.50 mm

  - Knuckle diameter : 10.00 mm

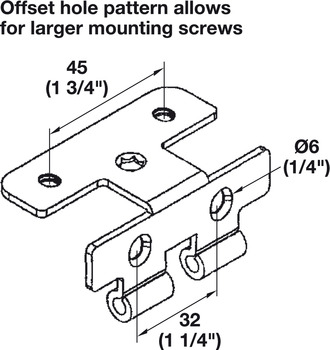

  - Number of drill holes : 7.00

  - Screw Ř : 5.00 mm

  - Product type : Five-Knuckle Institutional Hinge

  - Area of application : Universal usage on 3/4” & 13/16” materials

  - Version : Pre-mounted 5 mm Euro Screws

  - Flange shape : rounded
