Hafele 354.65.000 Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270 degree, 304 Stainless Steel Advantage 5 K

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.65.000

  Product Title: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, 304 Stainless Steel, Advantage 5 K

  Category: Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270°, 304 Stainless Steel, Advantage 5 K

  Item Details …

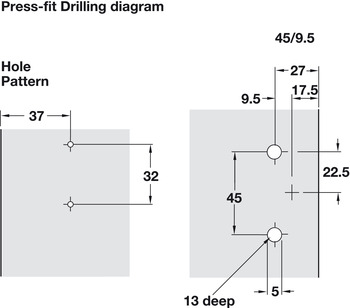

  - Standard drilling equipment can be used

  - Hinge knuckles broached for precision pin alignment and smooth operation

  - Hinge leaves punched after forming for precision alignment

  - Material : Stainless Steel

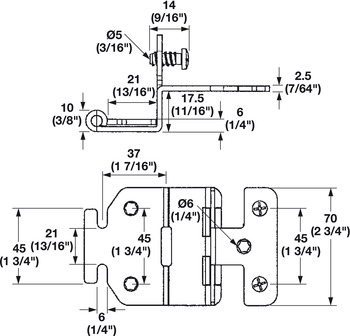

  - Total width : 121.00 mm

  - Flange thickness : 2.50 mm

  - Knuckle diameter : 10.00 mm

  - Number of drill holes : 7.00

  - Screw Ř : 5.00 mm

  - Product type : Five-Knuckle Institutional Hinge

  - Area of application : Universal usage on 3/4” & 13/16” materials

  - Version : Pre-mounted 5 mm Euro Screws

  - Flange shape : rounded

  - Supplied with:

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Advantage 5K Hinge Test Report

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.11-9.12.pdf

  Hafele 354.65.000, 354-65-000, 35465000, 354.65


  Specifications/Hafele Catalog - Page# FC9.10: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
