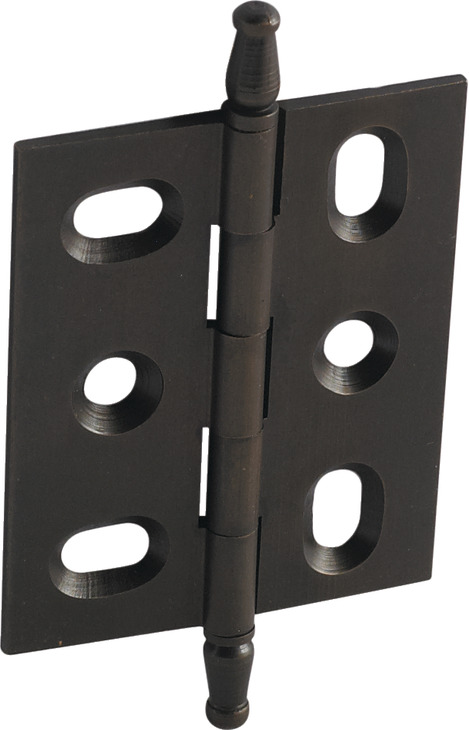

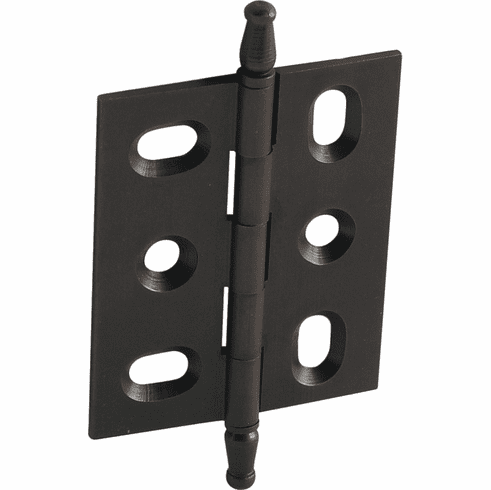

Hafele 354.17.110 Decorative Butt Hinge, Mortise, Minaret Finial ELITE solid brass hinge, Oil-rubbed bronze

Product Information

• Description

  Manufacturer: Hafele
  Item: 354.17.110

  Product Title: Decorative Butt Hinge, Mortise, Minaret Finial, ELITE solid brass hinge, Oil-rubbed bronze

  Category: Decorative Butt Hinge, Mortise, Minaret Finial, ELITE solid brass hinge

  Item Details …

  - Häfele’s ELITE Decorative Butt Hinge program provides a complete assortment of hinge choices to complement your decorative hardware.

  - Solid brass hinges with decorative finials

  - Beautiful finishes designed to complement your handle or knob

  - Material : Brass

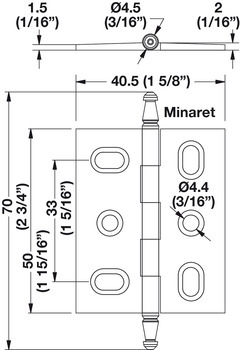

  - Total width : 40.50 mm

  - Flange thickness : 2.00 mm

  - Knuckle diameter : 4.50 mm

  - Number of drill holes : 6.00

  - Product type : Decorative Butt Hinge

  - Area of application : For inset face frame doors

  - Version : MortisedMinaret finial

  - Crank type : A

  - Flange shape : square

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.84



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.78-9.80.pdf

  Hafele 354.17.110, 354-17-110, 35417110, 354.17


  Specifications/Hafele Catalog - Page# FC9.87: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
