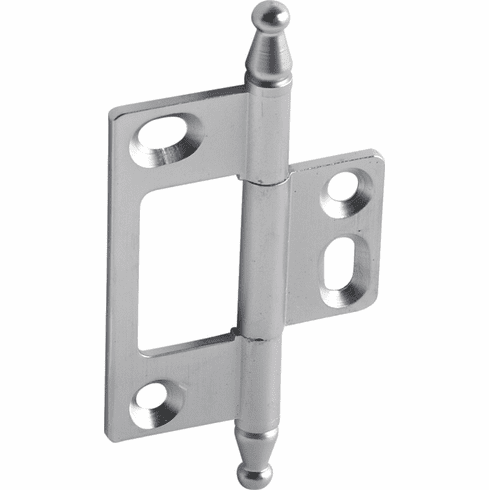

Hafele 351.95.480 Decorative Butt Hinge, Non-Mortise, Minaret Finial ELITE solid brass hinge, Satin chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 351.95.480

  Product Title: Decorative Butt Hinge, Non-Mortise, Minaret Finial, ELITE solid brass hinge, Satin chrome

  Category: Decorative Butt Hinge, Non-Mortise, Minaret Finial, ELITE solid brass hinge

  Item Details …

  - Häfele’s ELITE Decorative Butt Hinge program provides a complete assortment of hinge choices to complement your decorative hardware.

  - Solid brass hinges with decorative finials

  - Beautiful finishes designed to complement your handle or knob

  - Material : Brass

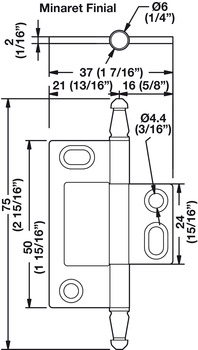

  - Total width : 37.00 mm

  - Flange thickness : 2.00 mm

  - Knuckle diameter : 6.00 mm

  - Number of drill holes : 4.00

  - Product type : Decorative Butt Hinge

  - Area of application : For inset face frame doors

  - Version : Non-MortisedMinaret finial

  - Crank type : A

  - Flange shape : rounded
