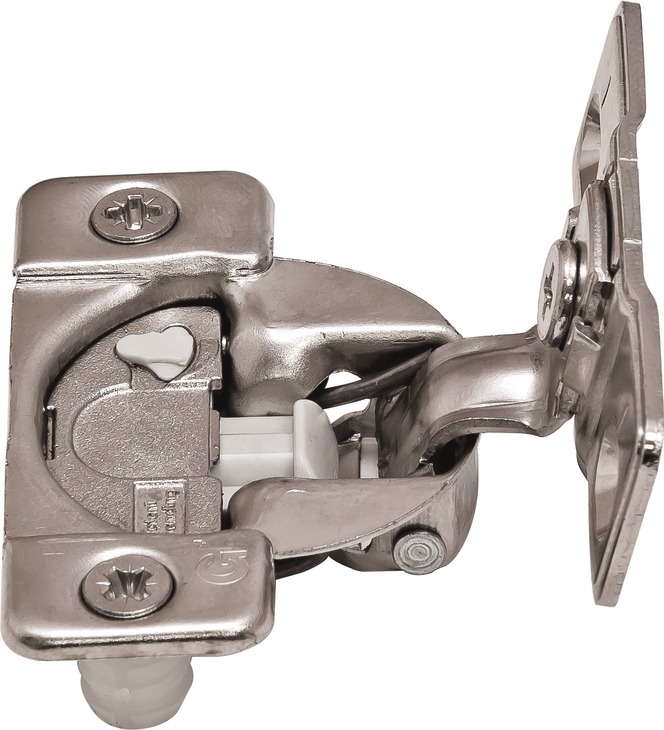

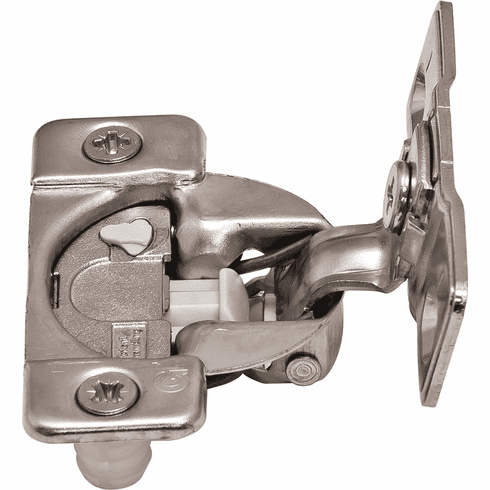

Hafele 348.90.091 Concealed Face Frame Hinge, Grass TEC Face Mount, 108 degree Opening Angle, Soft-Close Dowel Mount

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.90.091

  Product Title: Concealed Face Frame Hinge, Grass TEC Face Mount, 108° Opening Angle, Soft-Close, Dowel Mount

  Category: Concealed Face Frame Hinge, Grass TEC Face Mount, 108° Opening Angle, Soft-Close,

  Item Details …

  - Soft close mechanism is pre-mounted in the hinge cup

  - Adjustment switch to regulate closing action

  - One-piece hinge and base plate

  - 3-dimensional adjustment

  - Cam side and depth adjustment

  - Made in USA

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 108°

  - Cup drilling depth : 11.00 mm

  - Drilling depth : Cup drilling depth: 7/16”

  - Drilling pattern : 45/9.5

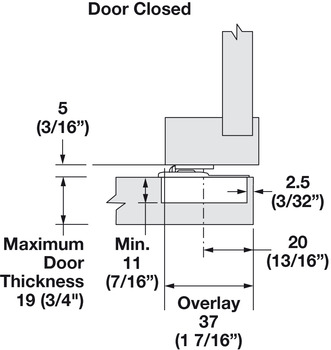

  - Installation height : Min. 1 7/16" when plate is flush to inside of face frame
