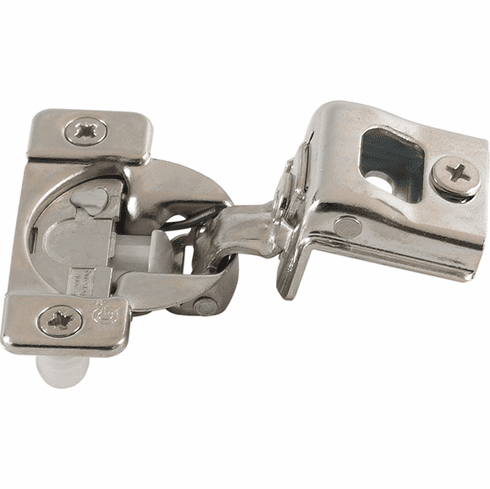

Hafele 348.90.025 Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close 1-1/4" Overlay, Press-fit; Model 02910A-15

Product Information

• Description

  Hafele 348.90.025 Concealed Face Frame Hinge, Grass TEC Wrap Around, 108� Opening Angle, Soft-Close
  1-1/4" Overlay, Press-fit; Model 02910A-15



  Model series : Grass TEC

  Adjustment : Side Adjustment Cam +/- 1/16" (1.5mm)
  Height Adjustment: +/- 3/32 (2mm)
  Depth Adjustment Cam +3/32" (2.5mm) - 1/32" (.5mm)

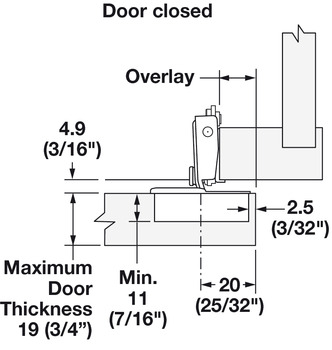

  Drilling depth : Cup drilling depth: (7/16��) 10.7 mm

  Opening angle : 108 �

  Drilling Pattern : 45/9.5

  Material : Steel

  Finish : Nickel



  Optional items:
  Raised Countersunk Head Screw
  Pan Head Screw with Uni-Drive


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.74-9.75.pdf

  Hafele 348.90.025, 348-90-025, 34890025, 348.90


  Specifications/Hafele Catalog - Page# FC9.73: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
