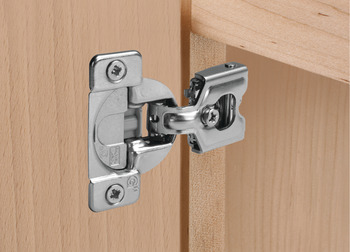

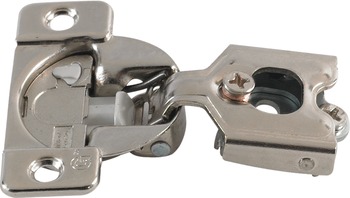

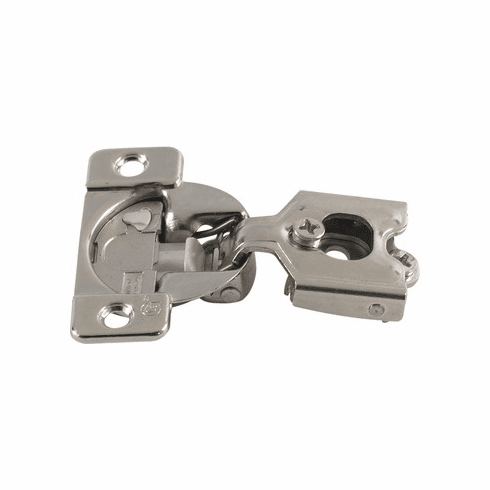

Hafele 348.90.011 Concealed Face Frame Hinge, Grass TEC Wrap Around, 108 degree Opening Angle, Soft-Close 7/16" Overlay, Screw-on; Model 02670A-15

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.90.011

  Product Title: Concealed Face Frame Hinge, Grass TEC Wrap Around, 108° Opening Angle, Soft-Close, 7/16" Overlay, Screw-on; Model 02670A-15

  Category: Concealed Face Frame Hinge, Grass TEC Wrap Around, 108° Opening Angle, Soft-Close,

  Item Details …

  - Flat head screw is for hinge cup; Pan head screw is for base plate.

  - Soft close mechanism is pre-mounted in the hinge cup

  - Adjustment switch to regulate closing action

  - One-piece hinge and base plate

  - 3-dimensional adjustment

  - Cam side and depth adjustment

  - Front and rear locating tabs position hinge on face frame

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 108°

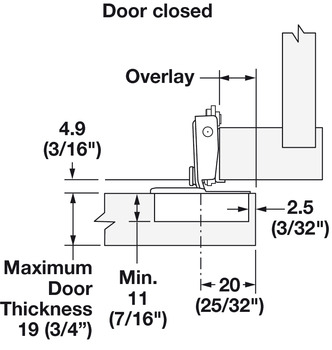

  - Cup drilling depth : 10.70 mm

  - Drilling depth : Cup drilling depth: 7/16”

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±1.5 mm, Height adjustment ±2 mm, Depth adjustment -5?–?2.5 mm

  - Installation height : 1/4” – 1"
