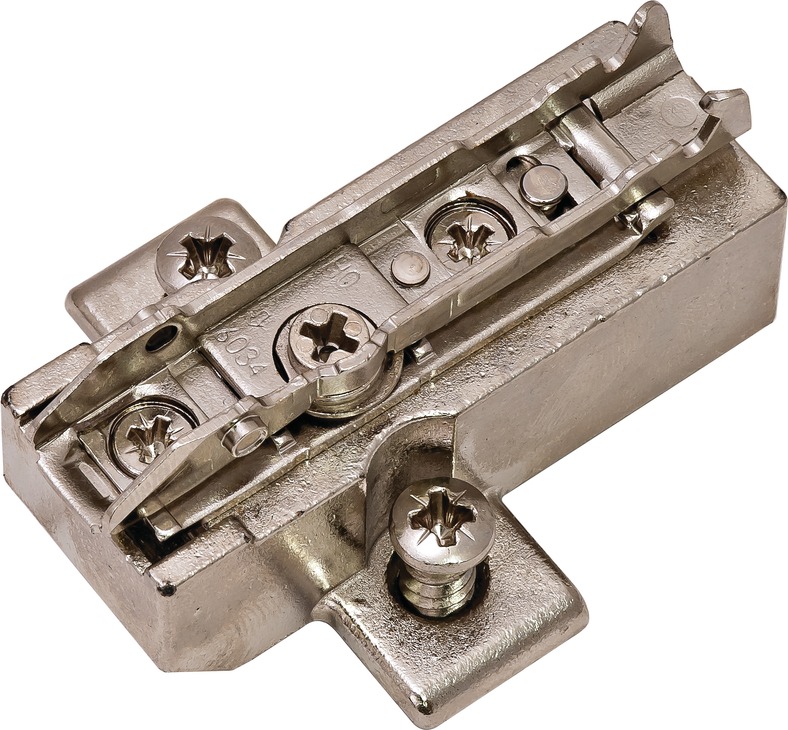

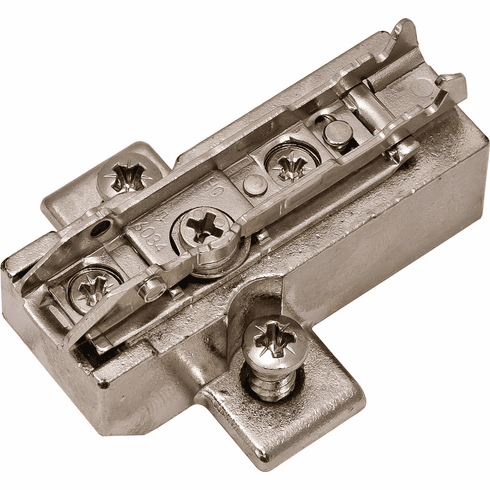

Hafele 348.39.505 Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws Height: 9.5 mm, model F058139882217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.39.505

  Product Title: Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws, Height adjustment via worm gear, Height: 9.5 mm, model F058139882217

  Category: Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws, Height adjustment via worm gear

  Item Details …

  - Area of application : for Grass Tiomos concealed hinges

  - Material : Steel/Zinc ally

  - Color/finish : nickel plated

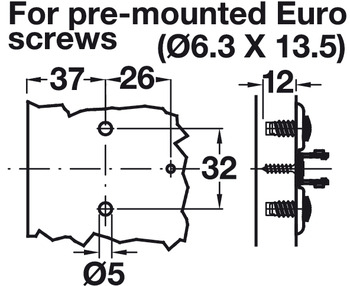

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 12.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Fixing method : clip system

  - Mounting plate version : For screw fixing with pre-mounted Euro screws

  - Manufacturer : Grass

  - Model series : Tiomos
