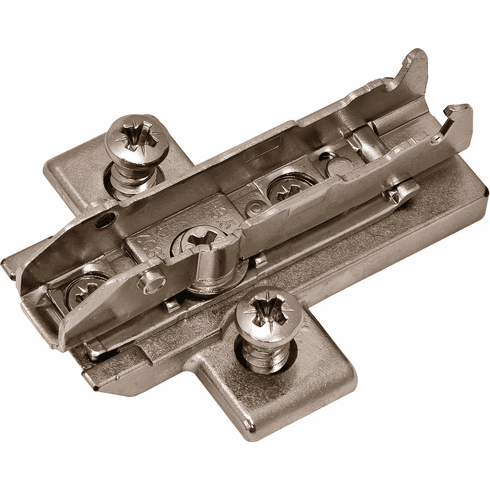

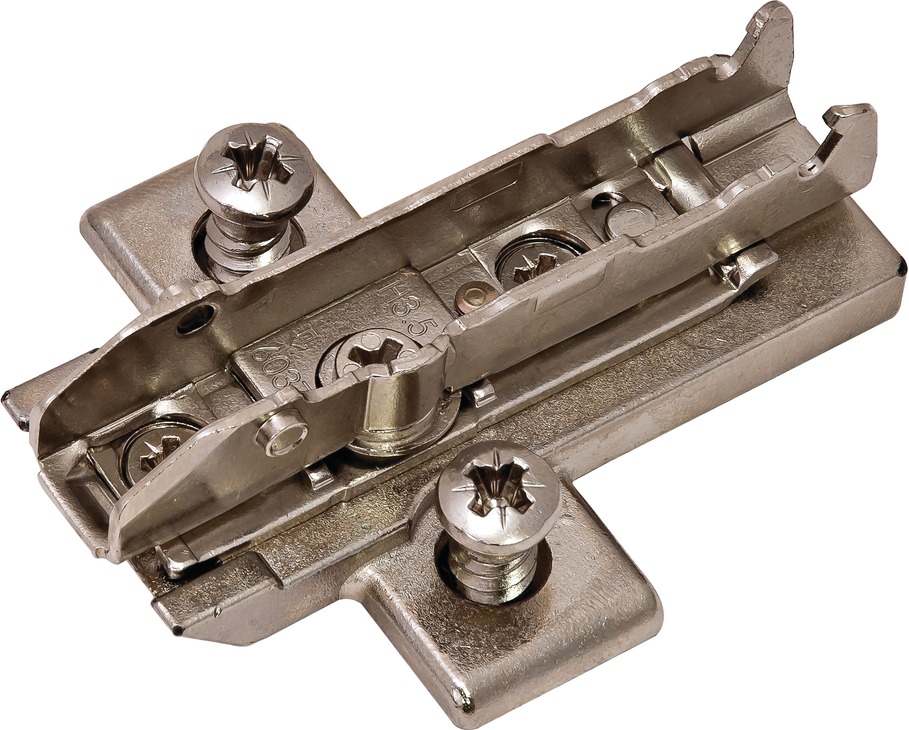

Hafele 348.38.682 Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels Height: 2 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.682

  Product Title: Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels, Height: 2 mm

  Category: Wing Baseplate, Grass TIOMOS 2-Point Fixing with 5 mm Dowels,

  Item Details …

  - Material : Steel

  - Color/finish : nickel plated

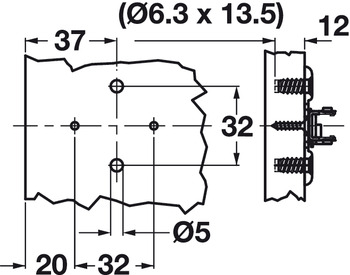

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 12.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

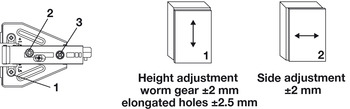

  - Adjustment facility : Height adjustment Via worm gear ±2 mm

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.60



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Wedges, for Grass TIOMOS Mounting Plates, +5° Wedge
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
