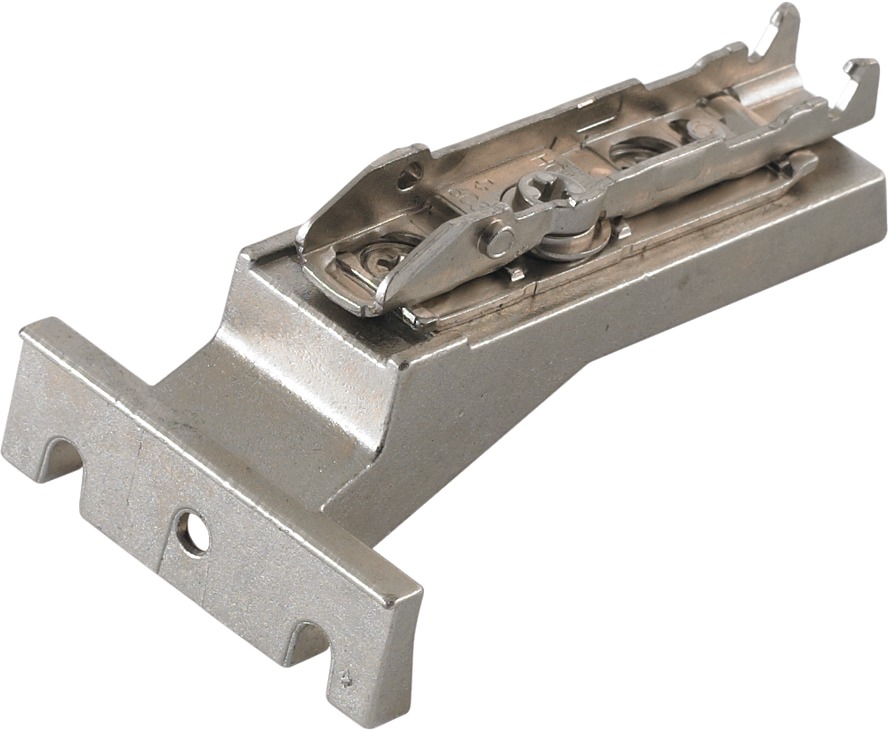

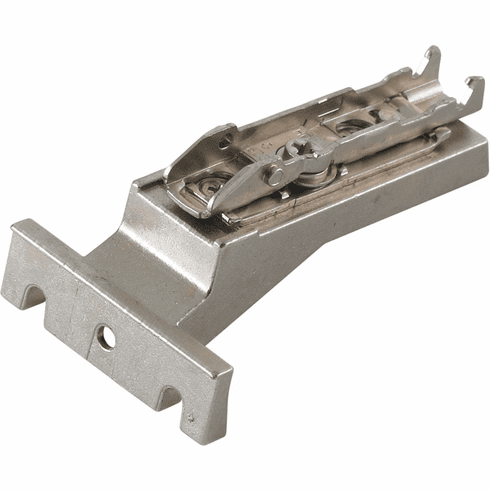

Hafele 348.38.660 Face Frame Adapter Baseplate, Grass TIOMOS, 3 Point Fixing with Wood Screws 0 mm, Model F058139831228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.660

  Product Title: Face Frame Adapter Baseplate, Grass TIOMOS, 3 Point Fixing with Wood Screws, 0 mm, Model F058139831228

  Category: Face Frame Adapter Baseplate, Grass TIOMOS, 3 Point Fixing with Wood Screws, 0 mm, Model F058139831228

  Item Details …

  - Requires a 9.5 mm crank hinge (half-overlay)

  - Material : Steel

  - Color/finish : nickel plated

  - Edge distance : 21.50 mm

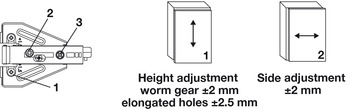

  - Adjustment facility : Height adjustment VIa worm gear

  - Model : F058139831228

  - Manufacturer : Grass

  - Model series : Tiomos

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.61



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.56-9.57.pdf

  Hafele 348.38.660, 348-38-660, 34838660, 348.38


  Specifications/Hafele Catalog - Page# FC9.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
