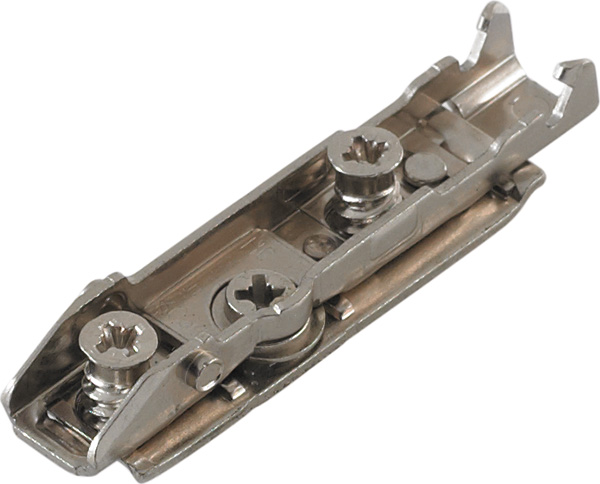

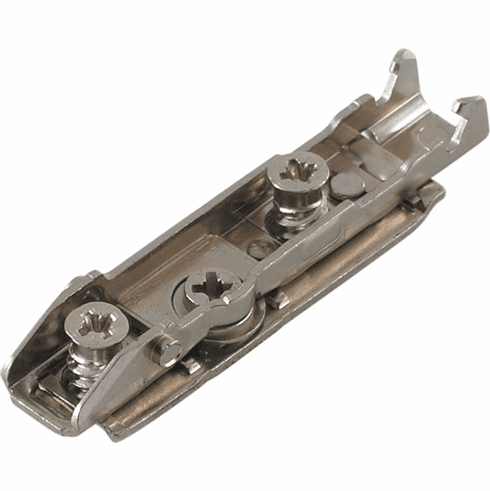

Hafele 348.38.630 Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw Height 0 mm, model F059139711228
Product Information
Description
Manufacturer: Hafele
Item: 348.38.630
Product Title: Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw, Height 0 mm, model F059139711228
Category: Straight Baseplate, Grass TIOIMOS, 2-Point Fixing with Pre-mounted Euro Screw,
Item Details …
- Material : Steel
- Color/finish : nickel plated
- For drill hole Ø : 5.00 mm
- Drilling depth : 13.00 mm
- Screw length : 13.50 mm
- Screw distance : 32.00 mm
- Edge distance : 20.00 mm
- Adjustment facility : Height adjustment Via worm gear ±2,5 mm
- Mounting plate version : For screw fixing with pre-mounted Euro screws
- Distance :
- Manufacturer : Grass
- Model series : TiomosData Sheet
