Hafele 348.38.551 Wing Baseplate, Grass TIOMOS, 3-Point Fixing with Euro Screws Height 0 mm, model F058139736228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.38.551

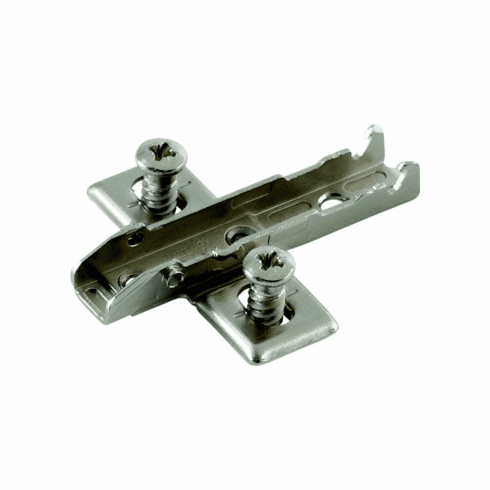

  Product Title: Wing Baseplate, Grass TIOMOS, 3-Point Fixing with Euro Screws, Height adjustment via slot, Height 0 mm, model F058139736228

  Category: Wing Baseplate, Grass TIOMOS, 3-Point Fixing with Euro Screws, Height adjustment via slot, Height 0 mm, model F058139736228

  Item Details …

  - Area of application : for Grass Tiomos Mirro concealed hinges

  - Material : Steel

  - Color/finish : nickel plated

  - For drill hole Ø : 5.00 mm

  - Drilling depth : 12.00 mm

  - Screw length : 13.50 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via slot ±2,5 mm

  - Fixing method : clip system

  - Mounting plate version : for screw fixing with pre-mounted pan head Euro screws

  - Model : F058139736228

  - Manufacturer : Grass

  - Model series : Tiomos
