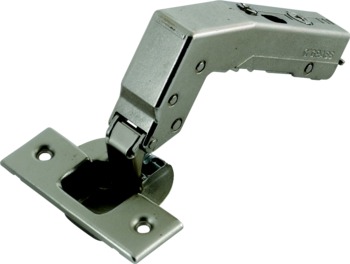

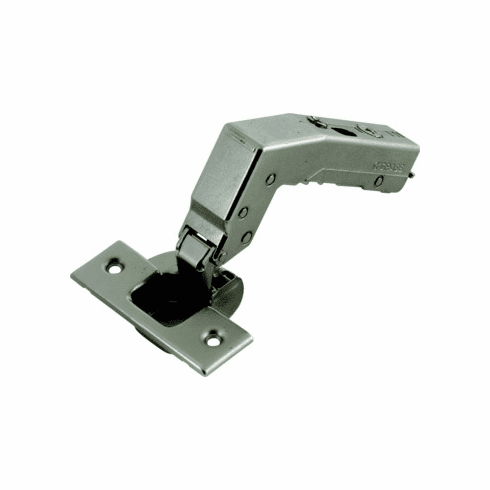

Hafele 348.37.830 Concealed Blind Corner Hinge, Grass TIOMOS, 110 degree Opening Angle, Overlay Mounting Soft close, press-fit, model F028138545223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.37.830

  Product Title: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Screw fixing cup,, Soft close, press-fit, model F028138545223

  Category: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting, Screw fixing cup,

  Item Details …

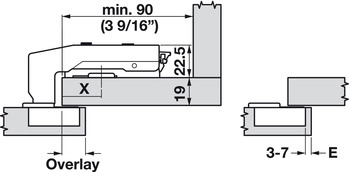

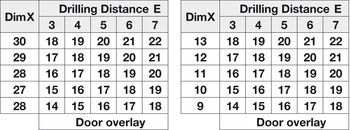

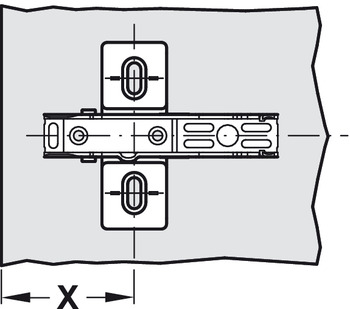

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate height 3 mm (1/8”).

  - Area of application : For blind corner applications

  - Version : With soft closing mechanism

  - Concealed hinge version : blind corner application

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Opening angle : 110°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : without tools

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm

• Data Sheet

  Detailed Data Sheet
