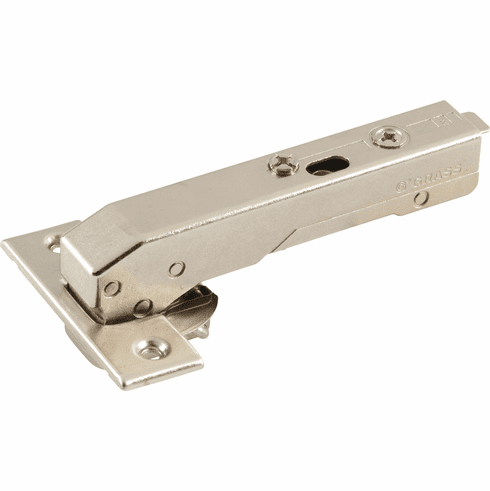

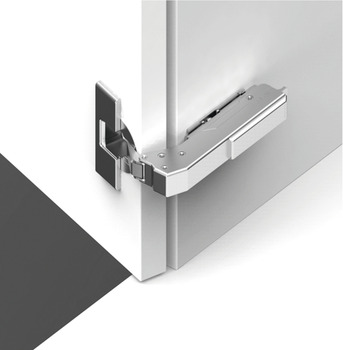

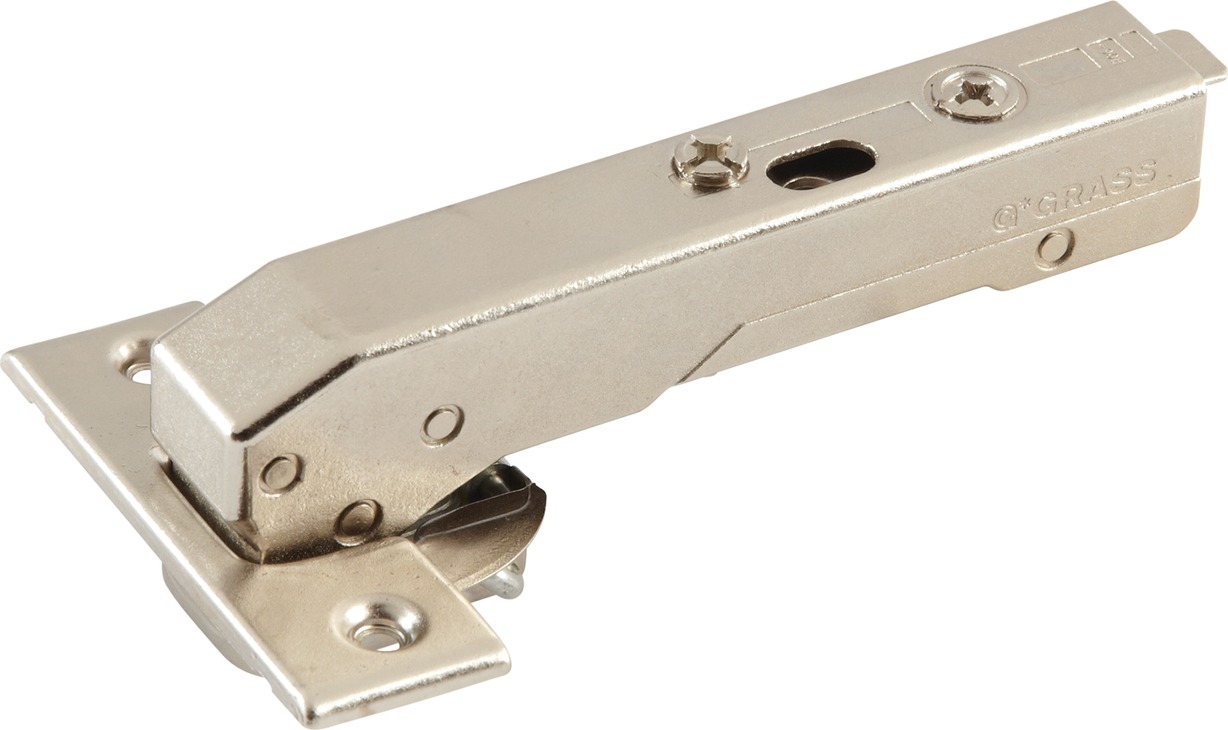

Hafele 348.37.600 Concealed Blind Corner Hinge, Grass TIOMOS, 110 degree Opening Angle, Inset Mounting Self close, screw-on, model F045138474223

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.37.600

  Product Title: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for blind corner applications (inset), Self close, screw-on, model F045138474223

  Category: Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting, for blind corner applications (inset)

  Item Details …

  - optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm

  - Area of application : For blind corner applications

  - Concealed hinge version : blind corner application

  - Crank type :

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Cup: Steel, Hinge arm: Zinc alloy

  - Color/finish : nickel plated

  - Opening angle : 110°

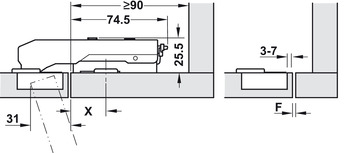

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm, Height adjustment depending on mounting plate

  - Installation : Door on cabinet without tools with clip system


  Additional Information …

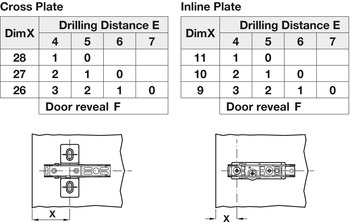

  use mounting plate 3 mm for flush front design of door and blind corner.
