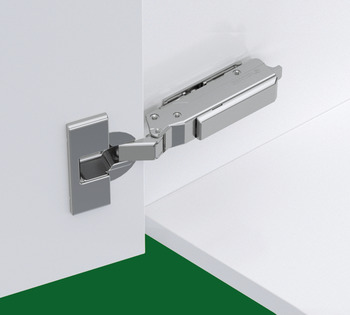

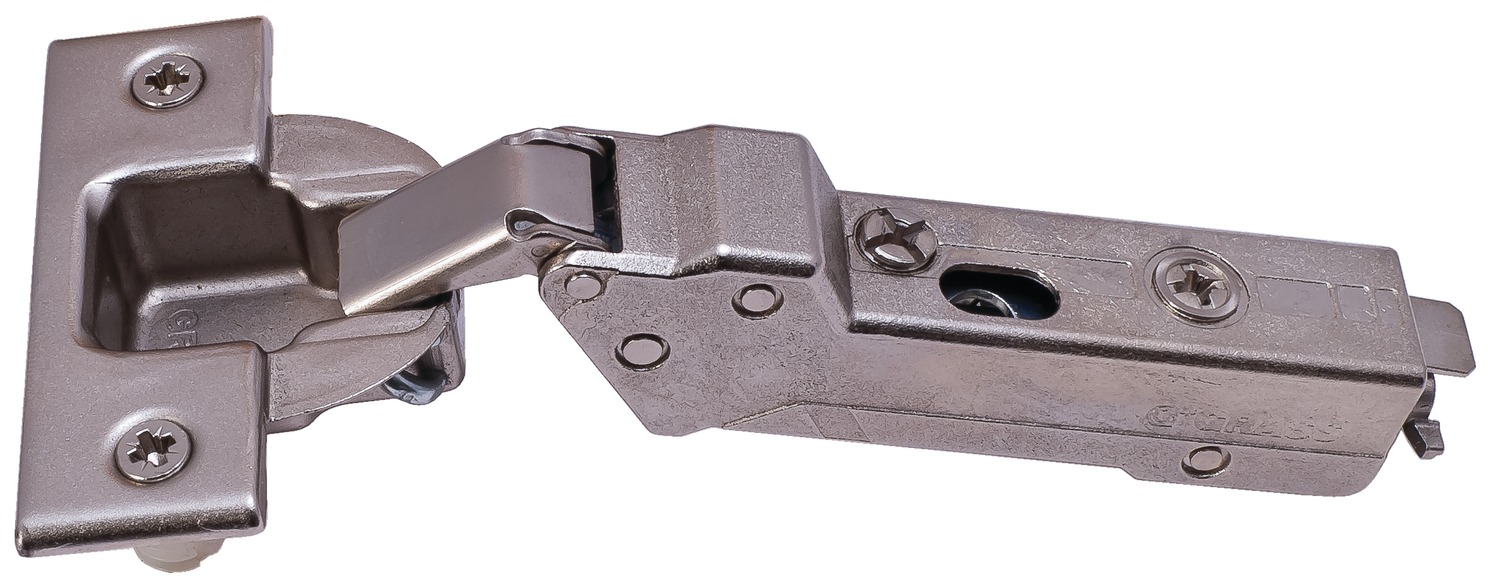

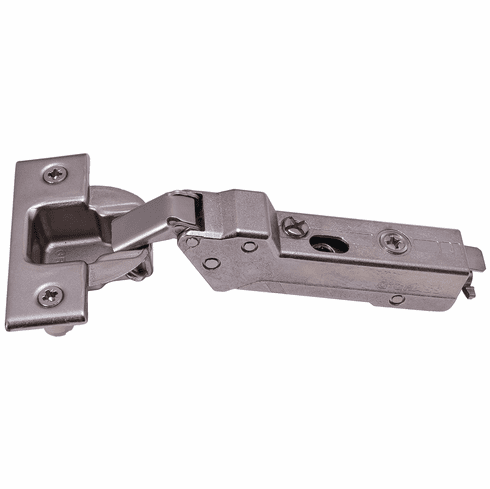

Hafele 348.36.802 Concealed Hinge, Grass TIOMOS, 120 degree Opening Angle, Half Overlay Soft close, screw-on, model F028138549228

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.36.802

  Product Title: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay, Soft close, screw-on, model F028138549228

  Category: Concealed Hinge, Grass TIOMOS, 120° Opening Angle, Half Overlay,

  Item Details …

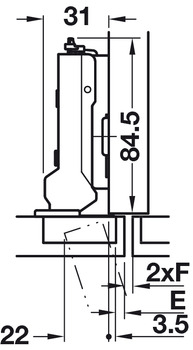

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  - 3 soft close settings, invisibly integrated in hinge arm

  - Area of application : A hinge system for all door applications

  - Concealed hinge version : half overlay

  - Crank type : Cranked

  - Door processing for assembly : with cup drilling

  - Material : Steel

  - Opening angle : 120°

  - Cup drilling depth : 12.60 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 45/9.5

  - Adjustment facility : Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2?–?3 mm


  Additional Information …

  The dimensions specified in the drawings are calculated with a mounting plate height of 2mm (3/32”).
