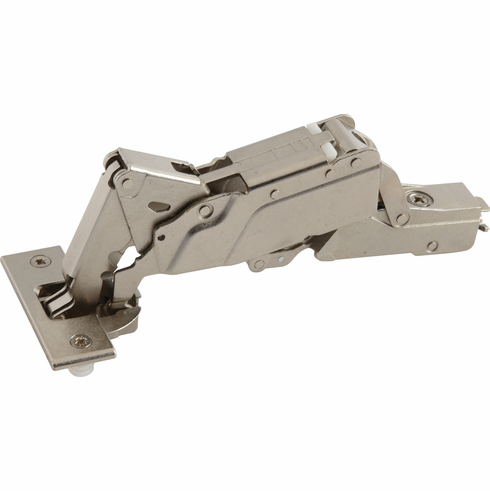

Hafele 348.32.810 Concealed Hinge, Grass TIOMOS, 160 degree Opening Angle, Full Overlay Soft close, press-fit, model F028138564217

Product Information

• Description

  Manufacturer: Hafele
  Item: 348.32.810

  Product Title: Concealed Hinge, Grass TIOMOS, 155º Opening Angle, Full Overlay, Soft close, press-fit, model F028138564217

  Category: Concealed Hinge, Grass TIOMOS, 155º Opening Angle, Full Overlay,

  Item Details …

  - Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  - Area of application : For large door overlay up to 24 mm

  - Concealed hinge version : full overlay plus

  - Crank type : Straight

  - Door processing for assembly : with cup drilling

  - Material : Zinc alloy

  - Color/finish :

  - Opening angle : 155°

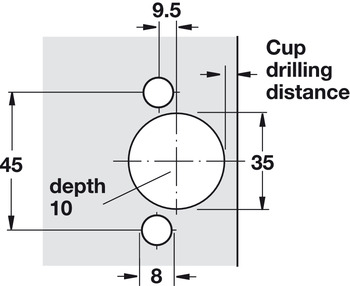

  - Cup drilling depth : 10.00 mm

  - Drilling depth : 3/8"

  - Cup drilling Ø : 35.00 mm

  - Cup fixing ___

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.53



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.52-9.52.pdf

  Hafele 348.32.810, 348-32-810, 34832810, 348.32


  Specifications/Hafele Catalog - Page# FC9.51: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
